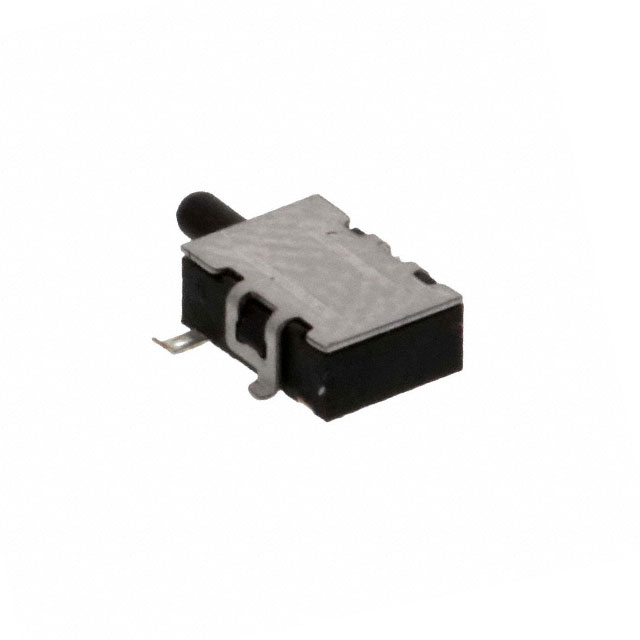

JJMH0UG200NOPMRTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH DETECTOR SPST-NO 0.1A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JJMH0UG200NOPMRTR |
|---|---|
| Actuator Type | Angled Toggle (Detector) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 50000 Cycles |
| Features | Board Guide |
| Mounting Type | Surface Mount |
| Operating Force | 70 gf |
| Operating Position [x] | 3.4 mm |
| Operating Position [x] | 0.134 in |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Pretravel | 0.35 mm |
| Pretravel | 0.014 in |
| Switch Function | Off-Mom |
| Termination Style | Gull Wing |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.72 | |
| 10 | $ 0.69 | |||
| 25 | $ 0.65 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.48 | |||
| Tape & Reel (TR) | 1900 | $ 0.54 | ||
Description
General part information
JJMH0UG200 Series
Switch SPST-NO Surface Mount
