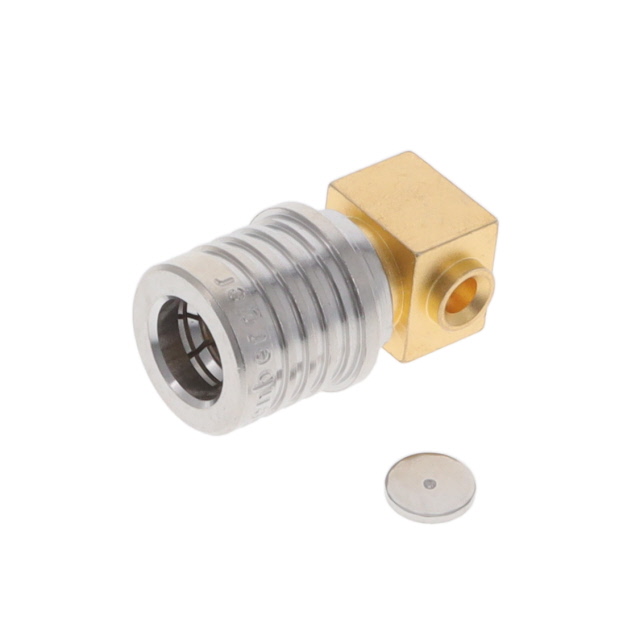

28S206-271N5

Active

Rosenberger

CONN QMA PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN QMA PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	28S206-271N5

Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Gold, Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Impedance	Frequency - Max [Max]	Mounting Type	Cable Group	Voltage Rating	Dielectric Material	Body Material	Shield Termination	Center Contact Material	Fastening Type	Number of Ports	Connector Type	Housing Color	Center Contact Plating	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]
Rosenberger 28S206-271N5	50 Ohms	18 GHz	Free Hanging (In-Line) Right Angle	RG-405 (.085" Semi Rigid)	250 VDC	Polytetrafluoroethylene (PTFE)	Brass	Solder	Brass	Snap-On	1	Male Pin Plug	Gold Silver	Gold	Solder	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
