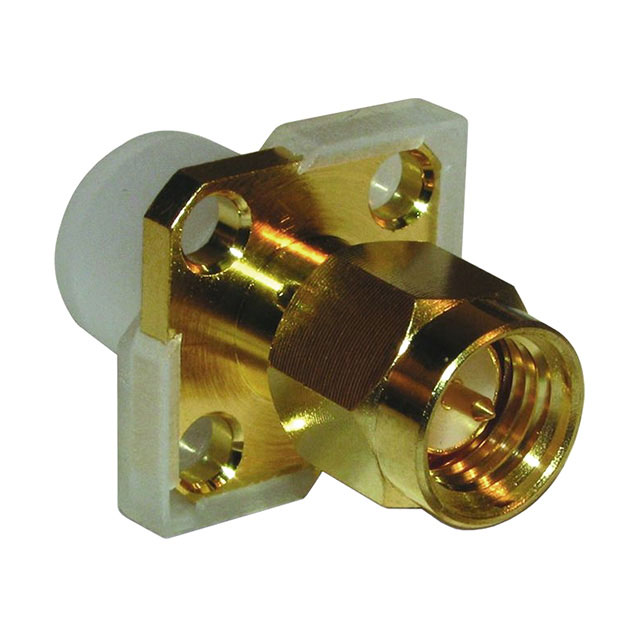

132164

Active

Amphenol RF

CONN SMA RCPT STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

132164

Active

Amphenol RF

CONN SMA RCPT STR 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	132164

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Tab
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

1321 Series

Part	Contact Termination	Connector Style	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Type	Mating Cycles	Body Material	Housing Color	Insertion Loss	Cable Group	Dielectric Material	Impedance	Includes	Frequency - Max [Max]	Shield Termination	Center Contact Plating	Center Contact Material	Mounting Type	Number of Ports	Style	Convert From (Adapter End)	Conversion Type	Convert To (Adapter End)	Adapter Series	Adapter Type	Center Gender	Mounting Feature	Ingress Protection	Features
Amphenol RF 132122	Solder	SMA	Gold	-65 ░C	165 °C	500 V	Male Pin Plug	500	Brass	Gold	0.3 dB	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Polytetrafluoroethylene (PTFE)	50 Ohms	1 Connector 1 End Cap 1 Ferrule	3 GHz	Crimp	Gold	Brass	Free Hanging (In-Line) Right Angle	1
Amphenol RF 132169			Gold	-65 ░C	165 °C				Brass				Polytetrafluoroethylene (PTFE)	50 Ohms		18 GHz		Gold	Beryllium Copper	Free Hanging (In-Line)		Straight	Female Socket SMA Jack	Same Series	Female Socket SMA Jack	SMA to SMA	Jack to Jack	Female to Female
Amphenol RF 132142	Solder Cup	SMA	Gold	-65 ░C	165 °C		Female Socket Receptacle	500	Brass	Gold			Polytetrafluoroethylene (PTFE)	50 Ohms		12.4 GHz	Solder	Gold	Beryllium Copper		1								Flange
Amphenol RF 132178	Solder	SMA	Gold	-65 ░C	165 °C	375 V	Male Pin Plug	500	Brass	Gold		188 316 Double Braid M17/152-RD316 RG-179	Polytetrafluoroethylene (PTFE)	50 Ohms		12.4 GHz	Crimp	Gold	Brass	Free Hanging (In-Line)	1									Weatherproof
Amphenol RF 132143	Solder Cup	SMA	Gold	-65 ░C	165 °C		Female Socket Receptacle	500	Brass	Gold			Polytetrafluoroethylene (PTFE)	50 Ohms		12.4 GHz	Solder	Gold	Beryllium Copper		1								Flange
Amphenol RF 132164	Solder Tab	SMA	Gold	-65 ░C	165 °C		Female Socket Receptacle	500	Brass	Gold			Polytetrafluoroethylene (PTFE)	50 Ohms		18 GHz	Solder	Gold	Beryllium Copper		1								Flange
Amphenol RF 132173	Solder	SMA	Gold	-65 ░C	165 °C		Male Pin Plug	500	Brass	Gold		178A 178B 196 196A M17/93-RG178 RG-178	Polytetrafluoroethylene (PTFE)	50 Ohms	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink	3 GHz	Crimp	Gold	Brass	Free Hanging (In-Line) Right Angle	1									Weatherproof
Amphenol RF 132121	Solder	SMA	Gold	-65 ░C	165 °C	375 V	Female Socket Jack	500	Brass	Gold		188 188A 316 LMR-100 M17/119-RG174 RG-174	Polytetrafluoroethylene (PTFE)	50 Ohms		12.4 GHz	Crimp	Gold	Beryllium Copper		1								Flange	Weatherproof
Amphenol RF 132147	Solder	SMA	Gold	-65 ░C	165 °C		Female Socket Receptacle	500	Brass	Gold			Polytetrafluoroethylene (PTFE)	50 Ohms		12.4 GHz	Solder	Gold	Beryllium Copper		1								Flange		Extended Insulation
Amphenol RF 132150	Solder	SMA	Gold	-65 ░C	165 °C		Female Socket Receptacle	500	Brass	Gold			Polytetrafluoroethylene (PTFE)	50 Ohms		12.4 GHz	Solder	Gold	Beryllium Copper		1								Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.99

Description

General part information

1321 Series

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Tab
