851-11-003-40-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 3POS 0.05 GOLD SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

851-11-003-40-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 3POS 0.05 GOLD SMD R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	851-11-003-40-001000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.087 "
Insulation Height	2.2 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

851-11 Series

Part	Current Rating (Amps)	Number of Rows	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Material	Contact Type	Contact Finish - Mating	Insulation Height	Insulation Height	Fastening Type	Contact Shape	Material Flammability Rating	Connector Type	Number of Positions
Mill-Max Manufacturing Corp. 851-11-047-40-001000	3 A	1	Surface Mount Right Angle	10 çin	0.25 çm	Gold	All	10 çin	0.25 çm	0.05 in	1.27 mm	Beryllium Copper	Black	-55 °C	125 °C	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	0.087 "	2.2 mm	Push-Pull	Circular	UL94 V-0	Receptacle
Mill-Max Manufacturing Corp. 851-11-008-40-001000	3 A	1	Surface Mount Right Angle	10 çin	0.25 çm	Gold	All	10 çin	0.25 çm	0.05 in	1.27 mm	Beryllium Copper	Black	-55 °C	125 °C	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	0.087 "	2.2 mm	Push-Pull	Circular	UL94 V-0	Receptacle	8
Mill-Max Manufacturing Corp. 851-11-035-40-001000	3 A	1	Surface Mount Right Angle	10 çin	0.25 çm	Gold	All	10 çin	0.25 çm	0.05 in	1.27 mm	Beryllium Copper	Black	-55 °C	125 °C	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	0.087 "	2.2 mm	Push-Pull	Circular	UL94 V-0	Receptacle	35
Mill-Max Manufacturing Corp. 851-11-019-40-001000	3 A	1	Surface Mount Right Angle	10 çin	0.25 çm	Gold	All	10 çin	0.25 çm	0.05 in	1.27 mm	Beryllium Copper	Black	-55 °C	125 °C	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	0.087 "	2.2 mm	Push-Pull	Circular	UL94 V-0	Receptacle	19
Mill-Max Manufacturing Corp. 851-11-046-40-001000	3 A	1	Surface Mount Right Angle	10 çin	0.25 çm	Gold	All	10 çin	0.25 çm	0.05 in	1.27 mm	Beryllium Copper	Black	-55 °C	125 °C	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	0.087 "	2.2 mm	Push-Pull	Circular	UL94 V-0	Receptacle	46
Mill-Max Manufacturing Corp. 851-11-032-40-001000	3 A	1	Surface Mount Right Angle	10 çin	0.25 çm	Gold	All	10 çin	0.25 çm	0.05 in	1.27 mm	Beryllium Copper	Black	-55 °C	125 °C	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	0.087 "	2.2 mm	Push-Pull	Circular	UL94 V-0	Receptacle
Mill-Max Manufacturing Corp. 851-11-007-40-001000	3 A	1	Surface Mount Right Angle	10 çin	0.25 çm	Gold	All	10 çin	0.25 çm	0.05 in	1.27 mm	Beryllium Copper	Black	-55 °C	125 °C	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	0.087 "	2.2 mm	Push-Pull	Circular	UL94 V-0	Receptacle	7
Mill-Max Manufacturing Corp. 851-11-023-40-001000	3 A	1	Surface Mount Right Angle	10 çin	0.25 çm	Gold	All	10 çin	0.25 çm	0.05 in	1.27 mm	Beryllium Copper	Black	-55 °C	125 °C	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	0.087 "	2.2 mm	Push-Pull	Circular	UL94 V-0	Receptacle	23
Mill-Max Manufacturing Corp. 851-11-003-40-001000	3 A	1	Surface Mount Right Angle	10 çin	0.25 çm	Gold	All	10 çin	0.25 çm	0.05 in	1.27 mm	Beryllium Copper	Black	-55 °C	125 °C	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	0.087 "	2.2 mm	Push-Pull	Circular	UL94 V-0	Receptacle
Mill-Max Manufacturing Corp. 851-11-025-40-001000	3 A	1	Surface Mount Right Angle	10 çin	0.25 çm	Gold	All	10 çin	0.25 çm	0.05 in	1.27 mm	Beryllium Copper	Black	-55 °C	125 °C	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	0.087 "	2.2 mm	Push-Pull	Circular	UL94 V-0	Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 13.41
		10	$ 10.31
		100	$ 8.04
		500	$ 6.84
		1000	$ 6.40

Description

General part information

851-11 Series

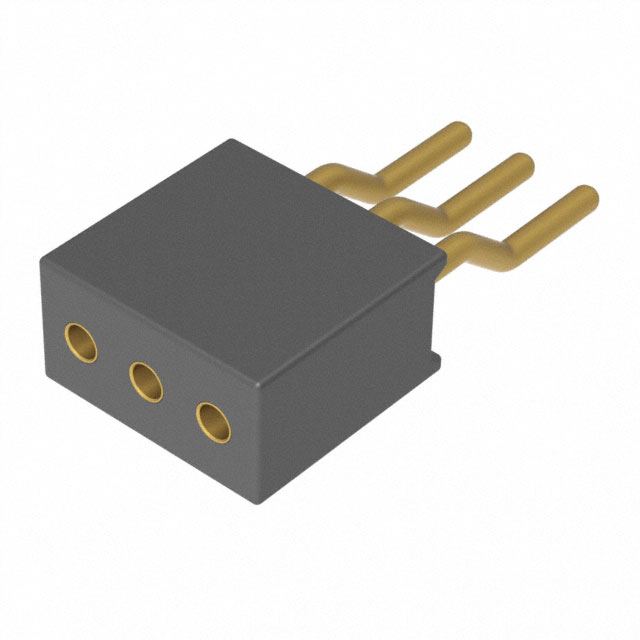

3 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold

Documents

Technical documentation and resources

No documents available
