TLE49663KHTSA1

Infineon Technologies

HALL EFFECT SWITCH, 25 G, -25 G, 2.7 V, 18 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

TLE49663KHTSA1

Infineon Technologies

HALL EFFECT SWITCH, 25 G, -25 G, 2.7 V, 18 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLE49663KHTSA1

Current - Output (Max) [Max]	50 mA
Current - Supply (Max) [Max]	7 mA
Features	Temperature Compensated
Function	Special Purpose
Grade	Automotive
Mounting Type	Surface Mount
Output Type	Open Collector

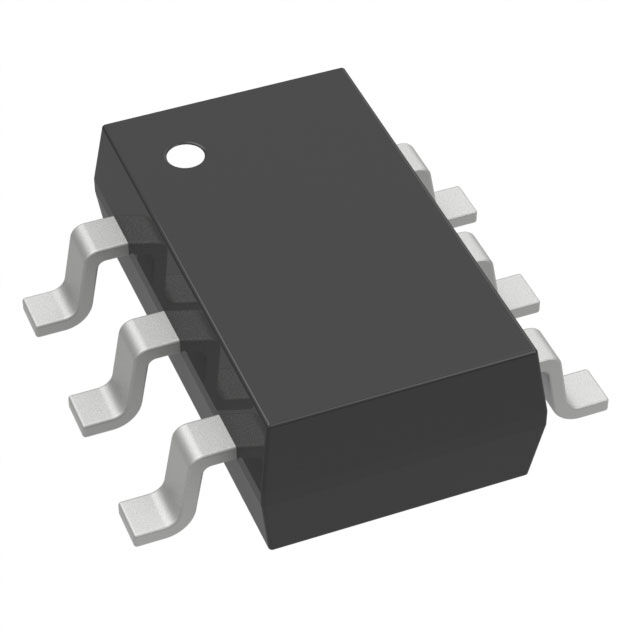

Package / Case	TSOT-23-6, SOT-23-6 Thin
Qualification	AEC-Q100
Supplier Device Package	PG-TSOP6-6
Technology	Hall Effect
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	2.7 V

TLE49663 Series

Part	Qualification	Grade	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Output (Max) [Max]	Current - Supply (Max) [Max]	Package / Case	Supplier Device Package	Technology	Function	Output Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Test Condition	Polarization	Sensing Range [Min]	Sensing Range [Max]
Infineon Technologies TLE49663KHTSA1	AEC-Q100	Automotive	Temperature Compensated	2.7 V	24 V	50 mA	7 mA	SOT-23-6 Thin TSOT-23-6	PG-TSOP6-6	Hall Effect	Special Purpose	Open Collector	Surface Mount
Infineon Technologies TLE49663GHTSA1	AEC-Q100	Automotive	Temperature Compensated	2.7 V	18 V	10 mA	7 mA	SOT-23-6 Thin TSOT-23-6	PG-TSOP6-6-9	Hall Effect	Special Purpose		Surface Mount	150 °C	-40 °C	25 °C	Either	-4.2 mT	4.2 mT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.69
		5	$ 0.60
		10	$ 0.57
		25	$ 0.53
		50	$ 0.51
		100	$ 0.49
		500	$ 0.44
		1000	$ 0.42
	Digi-Reel®	1	$ 0.69
		5	$ 0.60
		10	$ 0.57
		25	$ 0.53
		50	$ 0.51
		100	$ 0.49
		500	$ 0.44
		1000	$ 0.42
	Tape & Reel (TR)	3000	$ 0.40
		6000	$ 0.38
		9000	$ 0.37
		15000	$ 0.37
		21000	$ 0.36
Newark	Each (Supplied on Cut Tape)	1	$ 0.72
		10	$ 0.59
		25	$ 0.56
		50	$ 0.53
		100	$ 0.50
		250	$ 0.48
		500	$ 0.46
		1000	$ 0.44

Description

General part information

TLE49663 Series

TLE49663KHTSA1 is a high-sensitivity automotive hall switch with direction detection. It is an integrated circuit dual Hall-effect sensor designed specifically for highly accurate applications that use a rotating pole wheel. Precise magnetic switching points and high-temperature stability are achieved by active compensation circuits and chopper techniques on chip. The sensor provides a speed output at Q2 with the status (high or low) corresponding to the magnetic field value. For positive magnetic fields (south pole) exceeding the threshold BOP the output is low, whereas for negative magnetic fields (north pole) lower than BRP the output switches to high. The output Q1 can be either high or low depending on the direction of rotation of the pole wheel. This direction information is calculated internally.
