TB1-2H-AC-1

Active

Switch Components

VAC DPDT ON-OFF-(ON), 15/32

Search across all available documentation for this part.

Active

Switch Components

VAC DPDT ON-OFF-(ON), 15/32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

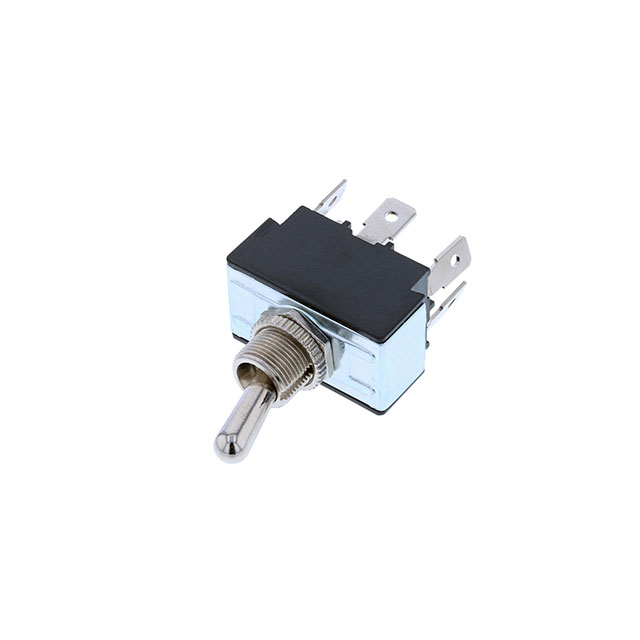

Toggle Switch DPDT Panel Mount

Technical documentation and resources

Specification	TB1-2H-AC-1	TB1-2H Series

Actuator Length [x]	16.5 mm	16.5 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	10 A	10 - 21 A
Electrical Life	-	6000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm	12 - 12.2 mm
Switch Function	On-Off-Mom	On-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Screw Terminal, Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V	125 - 250 V
Voltage Rating - DC	-	14 V

Part	Bushing Thread	Circuit	Voltage Rating - DC	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Illumination	Current Rating (Amps)	Electrical Life	Termination Style	Voltage Rating - AC	Actuator Type	Switch Function
Switch Components TB1-2H-DC-6	15/32-32	DPDT	14 V	16.5 mm	12 mm	Non-Illuminated	20 A, 21 A	6000 Cycles	Screw Terminal	125 V	Standard Round	On-Off-Mom
Switch Components TB1-2H-DC-1	15/32-32	DPDT	14 V	16.5 mm	12 mm	Non-Illuminated	20 A, 21 A	6000 Cycles	Quick Connect - 0.250" (6.3mm)	125 V	Standard Round	On-Off-Mom
Switch Components TB1-2H-AC-1	15/32-32	DPDT		16.5 mm	12.2 mm	Non-Illuminated	10 A		Quick Connect - 0.250" (6.3mm)	250 V	Standard Round	On-Off-Mom
