IPL1-103-02-L-S-K-TR

Active

Samtec Inc.

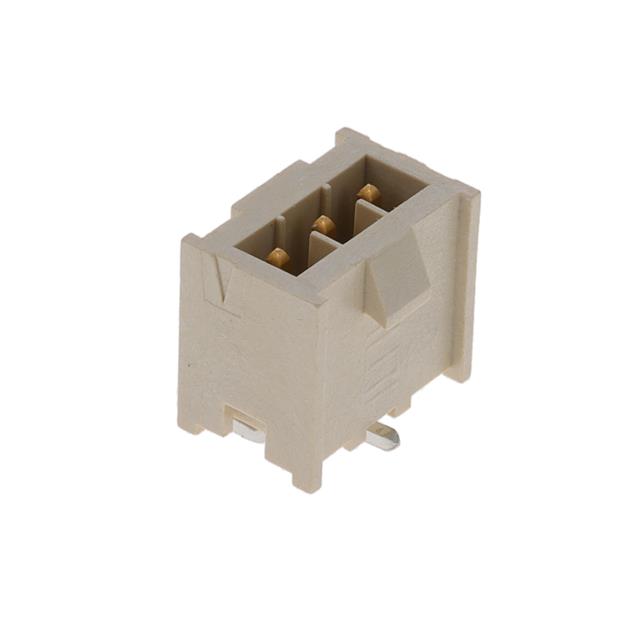

CONN HEADER SMD 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIPL1 Series Other Related Documents 01 Datasheet +2

IPL1-103-02-L-S-K-TR

Active

Samtec Inc.

CONN HEADER SMD 3POS 2.54MM

Deep-Dive with AI

DocumentsIPL1 Series Other Related Documents 01 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL1-103-02-L-S-K-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.46 mm
Contact Length - Mating	0.215 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	8.13 mm
Insulation Height	0.32 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	954 VDC, 675 VAC

IPL1-103 Series

Part	Shrouding	Connector Type	Style	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Shape	Insulation Material	Mounting Type	Termination	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Features	Contact Length - Mating	Contact Length - Mating	Contact Type	Contact Finish - Mating	Material Flammability Rating	Number of Rows	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Material	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. IPL1-103-01-F-S-RE1-K-WT	Shrouded - 4 Wall	Header	Board to Cable/Wire	Locking Ramp	-55 °C	125 °C	3 µin	0.076 µm	675 VAC 954 VDC	Square	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	Solder	Tin	0.1 in	2.54 mm	Board Guide	5.46 mm	0.215 in	Male Pin	Gold	UL94 V-0	1	All	2.16 mm	0.085 in	Natural	Phosphor Bronze	0.24 in	6.1 mm
Samtec Inc. IPL1-103-02-STL-D-K	Shrouded - 4 Wall	Header	Board to Cable/Wire	Locking Ramp	-55 °C	125 °C	30 Áin	0.76 Ám	675 VAC 954 VDC	Square	Liquid Crystal Polymer (LCP)	Surface Mount	Solder	Tin	0.1 in	2.54 mm		5.46 mm	0.215 in	Male Pin	Gold	UL94 V-0	2	All			Natural	Phosphor Bronze	0.32 in	8.13 mm	2.54 mm	0.1 in	6
Samtec Inc. IPL1-103-02-S-S-K	Shrouded - 4 Wall	Header	Board to Cable/Wire	Locking Ramp	-55 °C	125 °C	30 Áin	0.76 Ám	675 VAC 954 VDC	Square	Liquid Crystal Polymer (LCP)	Surface Mount	Solder	Tin	0.1 in	2.54 mm		5.46 mm	0.215 in	Male Pin	Gold	UL94 V-0	1	All			Natural	Phosphor Bronze	0.32 in	8.13 mm
Samtec Inc. IPL1-103-01-S-S-RE1-K-WT	Shrouded - 4 Wall	Header	Board to Cable/Wire	Locking Ramp	-55 °C	125 °C	30 Áin	0.76 Ám	675 VAC 954 VDC	Square	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	Solder	Tin	0.1 in	2.54 mm	Board Guide	5.46 mm	0.215 in	Male Pin	Gold	UL94 V-0	1	All	2.16 mm	0.085 in	Natural	Phosphor Bronze	0.24 in	6.1 mm
Samtec Inc. IPL1-103-02-L-S-K-TR	Shrouded - 4 Wall	Header	Board to Cable/Wire	Locking Ramp	-55 °C	125 °C	10 çin	0.25 çm	675 VAC 954 VDC	Square	Liquid Crystal Polymer (LCP)	Surface Mount	Solder	Tin	0.1 in	2.54 mm		5.46 mm	0.215 in	Male Pin	Gold	UL94 V-0	1	All			Natural	Phosphor Bronze	0.32 in	8.13 mm
Samtec Inc. IPL1-103-03-S-SH-K-TR	Shrouded - 4 Wall	Header	Board to Cable/Wire	Locking Ramp	-55 °C	125 °C	30 Áin	0.76 Ám	675 VAC 954 VDC	Square	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	Tin	0.1 in	2.54 mm		5.46 mm	0.215 in	Male Pin	Gold	UL94 V-0	1	All			Natural	Phosphor Bronze	0.22 in	5.6 mm
Samtec Inc. IPL1-103-01-F-D-RE1-K	Shrouded - 4 Wall	Header	Board to Cable/Wire	Locking Ramp	-55 °C	125 °C	3 µin	0.076 µm	675 VAC 954 VDC	Square	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	Solder	Tin	0.1 in	2.54 mm		5.46 mm	0.215 in	Male Pin	Gold	UL94 V-0	2	All	2.16 mm	0.085 in	Natural	Phosphor Bronze	0.325 in	8.25 mm	2.54 mm	0.1 in	6
Samtec Inc. IPL1-103-03-F-SH-K-TR	Shrouded - 4 Wall	Header	Board to Cable/Wire	Locking Ramp	-55 °C	125 °C	3 µin	0.076 µm	675 VAC 954 VDC	Square	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	Tin	0.1 in	2.54 mm		5.46 mm	0.215 in	Male Pin	Gold	UL94 V-0	1	All			Natural	Phosphor Bronze	0.22 in	5.6 mm
Samtec Inc. IPL1-103-01-STL-D-K	Shrouded - 4 Wall	Header	Board to Cable/Wire	Locking Ramp	-55 °C	125 °C	30 Áin	0.76 Ám	675 VAC 954 VDC	Square	Liquid Crystal Polymer (LCP)	Through Hole	Solder	Tin	0.1 in	2.54 mm		5.46 mm	0.215 in	Male Pin	Gold	UL94 V-0	2	All			Natural	Phosphor Bronze	0.32 in	8.13 mm	2.54 mm	0.1 in	6	0.12 in	3.05 mm
Samtec Inc. IPL1-103-02-H-D-K	Shrouded - 4 Wall	Header	Board to Cable/Wire	Locking Ramp	-55 °C	125 °C	30 Áin	0.76 Ám	675 VAC 954 VDC	Square	Liquid Crystal Polymer (LCP)	Surface Mount	Solder	Gold	0.1 in	2.54 mm		5.46 mm	0.215 in	Male Pin	Gold	UL94 V-0	2	All			Natural	Phosphor Bronze	0.32 in	8.13 mm	2.54 mm	0.1 in	6			3 µin	0.076 µm
