EN3C18F26X

Active

Switchcraft Inc.

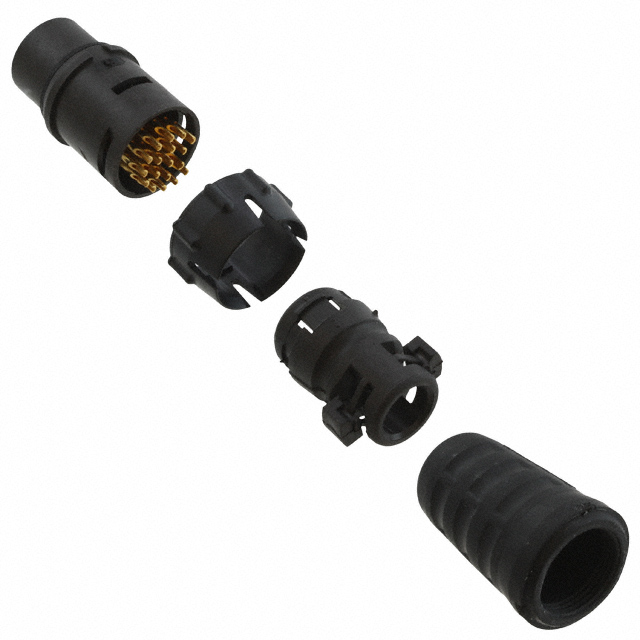

CONN PLUG FMALE 18P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3C18F26X

Active

Switchcraft Inc.

CONN PLUG FMALE 18P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.05
		10	$ 33.30
		25	$ 30.21
		50	$ 28.12
		100	$ 26.23
		300	$ 23.60

Description

General part information

EN3C18 Series

18 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3C18F26X	EN3C18 Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3 A	3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	18	18
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Voltage Rating	250 VAC	250 VAC

EN3C18 Series

CONN PLUG MALE 18P GOLD SLDR CUP

Part	Applications	Contact Finish - Mating	Voltage Rating	Connector Type	Backshell Material, Plating	Color	Primary Material	Insert Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions	Ingress Protection	Features	Fastening Type	Orientation	Contact Material	Mounting Type	Shielding	Current Rating (Amps)	Termination
Switchcraft Inc. EN3C18M26X	General Purpose, Instrumentation, Marine, Medical	Gold	250 VAC	Male Pins, Plug	Thermoplastic	Black	Plastic	Elastomer	UL94 V-0	65 °C	-40 °C	4.06 mm, 6.73 mm	0.16 in, 0.265 in	18	IP66/IP68	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	Keyed	Copper Alloy	Free Hanging (In-Line)	Unshielded	3 A
Switchcraft Inc. EN3C18F26SX	General Purpose, Instrumentation, Marine, Medical	Gold	250 VAC	Female Sockets, Plug	Thermoplastic	Black	Plastic	Elastomer	UL94 V-0	65 °C	-40 °C	4.06 mm, 6.73 mm	0.16 in, 0.265 in	18	IP66/IP68	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	Keyed	Copper Alloy	Free Hanging (In-Line)	Unshielded	3 A
Switchcraft Inc. EN3C18M26CX	General Purpose, Instrumentation, Marine, Medical	Gold	250 VAC	Male Pins, Plug	Thermoplastic	Black	Plastic	Elastomer	UL94 V-0	65 °C	-40 °C	4.06 mm, 6.73 mm	0.16 in, 0.265 in	18	IP66/IP68	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	Keyed	Copper Alloy	Free Hanging (In-Line)	Unshielded	3 A	Crimp
Switchcraft Inc. EN3C18F26CX	General Purpose, Instrumentation, Marine, Medical	Gold	250 VAC	Female Sockets, Plug	Thermoplastic	Black	Plastic	Elastomer	UL94 V-0	65 °C	-40 °C	4.06 mm, 6.73 mm	0.16 in, 0.265 in	18	IP66/IP68	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	Keyed	Copper Alloy	Free Hanging (In-Line)	Unshielded	3 A	Crimp
Switchcraft Inc. EN3C18F26X	General Purpose, Instrumentation, Marine, Medical	Gold	250 VAC	Female Sockets, Plug	Thermoplastic	Black	Plastic	Elastomer	UL94 V-0	65 °C	-40 °C	4.06 mm, 6.73 mm	0.16 in, 0.265 in	18	IP66/IP68	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	Keyed	Copper Alloy	Free Hanging (In-Line)	Unshielded	3 A
