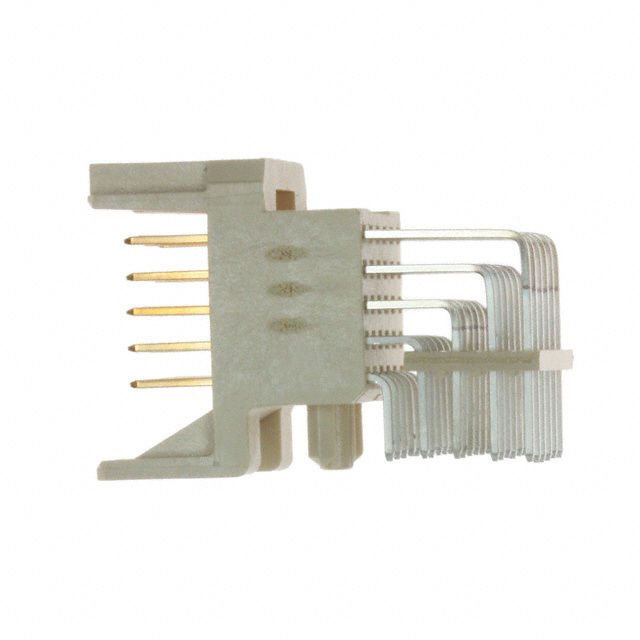

MP2-P030-51M1-LR

Active

80620138414 MP2-P030-51M1-LR =MP2/ROHS/HDR/INV/30P/5R/ST/3.30MM/30PDNI

Search across all available documentation for this part.

Active

80620138414 MP2-P030-51M1-LR =MP2/ROHS/HDR/INV/30P/5R/ST/3.30MM/30PDNI

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MP2-P030-51M1-LR	MP2-P030 Series

Color	Beige	Beige
Connector Style	Futurebus+®	Futurebus+®
Connector Type	Header, Male Pins	Header, Male Pins
Connector Usage	Backplane	Backplane
Contact Finish	Gold	Gold
Contact Finish Thickness	3 Áin	3 Áin
Contact Finish Thickness	0.076 Ám	0.076 Ám
Current Rating (Amps)	1.5 A	1.5 A
Features	Board Guide, Inverse	Board Guide, Inverse
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge	Through Hole, Right Angle, Board Edge
Number of Positions	30	30
Number of Positions Loaded	All	All
Number of Rows	5	5
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Termination	Solder	Solder

80620138414 MP2-P030-51M1-LR =MP2/ROHS/HDR/INV/30P/5R/ST/3.30MM/30PDNI

Part	Color	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mounting Type	Number of Positions Loaded	Number of Rows	Connector Style	Contact Finish	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination	Pitch [x]	Pitch [x]	Connector Usage	Material Flammability Rating	Features
3M MP2-P030-51M1-LR	Beige	3 Áin	0.076 Ám	Header, Male Pins	Board Edge, Right Angle, Through Hole	All	5	Futurebus+®	Gold	30	-55 °C	125 °C	1.5 A	Solder	0.079 in	2 mm	Backplane	UL94 V-0	Board Guide, Inverse
3M MP2-P030-54M1-LR	Beige	3 Áin	0.076 Ám	Header, Male Pins	Board Edge, Right Angle, Through Hole	All	5	Futurebus+®	Gold	30	-55 °C	125 °C	1.5 A	Solder	0.079 in	2 mm	Backplane	UL94 V-0	Board Guide, Inverse

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Beige Futurebus+®
