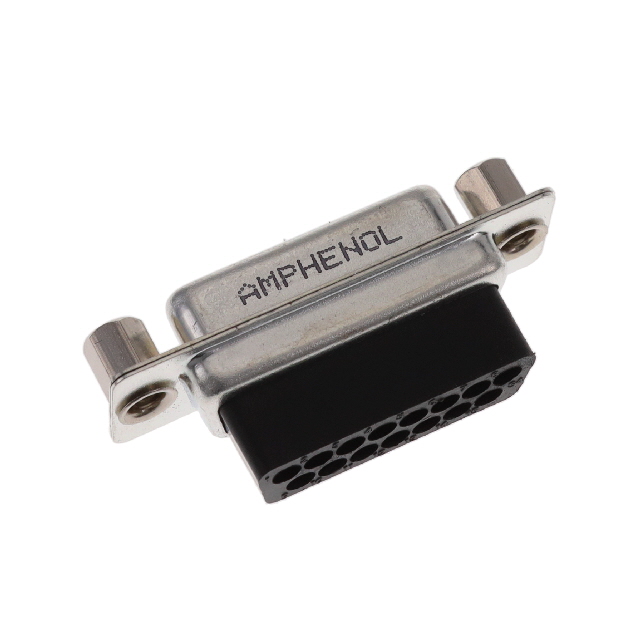

L177RRA15SVF
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HOUSING RCPT 15POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L177RRA15SVF
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HOUSING RCPT 15POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L177RRA15SVF |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish Thickness | 2.54 µm |
| Shell Finish Thickness | 100 µin |
| Shell Size, Connector Layout | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.66 | |
| 10 | $ 0.56 | |||
| 25 | $ 0.54 | |||
| 70 | $ 0.53 | |||
| 140 | $ 0.50 | |||
| 280 | $ 0.46 | |||
| 490 | $ 0.41 | |||
| 980 | $ 0.40 | |||
Description
General part information
L177RRA15 Series
Receptacle for Female Contacts Housing D-Sub Connector 15 Position
