SMA-A0207BTNT15K
ActiveTE Connectivity Passive Product
RES 15K OHM 0.1% 1W MELF 0207
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMA-A0207BTNT15K
ActiveTE Connectivity Passive Product
RES 15K OHM 0.1% 1W MELF 0207
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMA-A0207BTNT15K |
|---|---|
| Composition | Metal Film |
| Features | Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | MELF, 0207 |
| Power (Watts) | 1 W |
| Ratings | AEC-Q200 |
| Resistance | 15 kOhms |
| Size / Dimension | 2.2 mm, 5.9 mm |
| Size / Dimension [diameter] | 0.087 " |
| Size / Dimension [x] | 0.232 in |
| Supplier Device Package | 0207 |
| Temperature Coefficient | 15 ppm/°C |
| Tolerance | 0.1 % |
SMA-A0207 Series
| Part | Composition | Number of Terminations | Supplier Device Package | Features | Tolerance | Temperature Coefficient | Ratings | Resistance | Size / Dimension | Size / Dimension [x] | Size / Dimension [diameter] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Passive Product | Metal Film | 2 | 0207 | Automotive AEC-Q200 | 0.1 % | 15 ppm/°C | AEC-Q200 | 6.8 kOhms | 2.2 mm 5.9 mm | 0.232 in | 0.087 " | MELF 0207 | 155 °C | -55 °C | 1 W |
TE Connectivity Passive Product | Metal Film | 2 | 0207 | Automotive AEC-Q200 | 0.1 % | 15 ppm/°C | AEC-Q200 | 56 kOhms | 2.2 mm 5.9 mm | 0.232 in | 0.087 " | MELF 0207 | 155 °C | -55 °C | 1 W |
TE Connectivity Passive Product | Metal Film | 2 | 0207 | Automotive AEC-Q200 | 0.1 % | 15 ppm/°C | AEC-Q200 | 15 kOhms | 2.2 mm 5.9 mm | 0.232 in | 0.087 " | MELF 0207 | 155 °C | -55 °C | 1 W |
TE Connectivity Passive Product | Metal Film | 2 | 0207 | Automotive AEC-Q200 | 0.1 % | 15 ppm/°C | AEC-Q200 | 1.8 kOhms | 2.2 mm 5.9 mm | 0.232 in | 0.087 " | MELF 0207 | 155 °C | -55 °C | 1 W |
TE Connectivity Passive Product | Metal Film | 2 | 0207 | Automotive AEC-Q200 | 0.1 % | 15 ppm/°C | AEC-Q200 | 2.7 kOhms | 2.2 mm 5.9 mm | 0.232 in | 0.087 " | MELF 0207 | 155 °C | -55 °C | 1 W |
TE Connectivity Passive Product | Metal Film | 2 | 0207 | Automotive AEC-Q200 | 0.1 % | 15 ppm/°C | AEC-Q200 | 8.2 kOhms | 2.2 mm 5.9 mm | 0.232 in | 0.087 " | MELF 0207 | 155 °C | -55 °C | 1 W |
TE Connectivity Passive Product | Metal Film | 2 | 0207 | Automotive AEC-Q200 | 0.1 % | 15 ppm/°C | AEC-Q200 | 120 Ohms | 2.2 mm 5.9 mm | 0.232 in | 0.087 " | MELF 0207 | 155 °C | -55 °C | 1 W |
TE Connectivity Passive Product | Metal Film | 2 | 0207 | Automotive AEC-Q200 | 0.1 % | 15 ppm/°C | AEC-Q200 | 470 Ohms | 2.2 mm 5.9 mm | 0.232 in | 0.087 " | MELF 0207 | 155 °C | -55 °C | 1 W |
TE Connectivity Passive Product | Metal Film | 2 | 0207 | Automotive AEC-Q200 | 0.1 % | 15 ppm/°C | AEC-Q200 | 82 kOhms | 2.2 mm 5.9 mm | 0.232 in | 0.087 " | MELF 0207 | 155 °C | -55 °C | 1 W |
TE Connectivity Passive Product | Metal Film | 2 | 0207 | Automotive AEC-Q200 | 0.1 % | 15 ppm/°C | AEC-Q200 | 330 Ohms | 2.2 mm 5.9 mm | 0.232 in | 0.087 " | MELF 0207 | 155 °C | -55 °C | 1 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.65 | |
| 10 | $ 1.39 | |||
| 25 | $ 1.35 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.06 | |||
| 250 | $ 0.96 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 1.65 | ||
| 10 | $ 1.39 | |||
| 25 | $ 1.35 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.06 | |||
| 250 | $ 0.96 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.69 | |||
| Tape & Reel (TR) | 2000 | $ 0.58 | ||
Description
General part information
SMA-A0207 Series

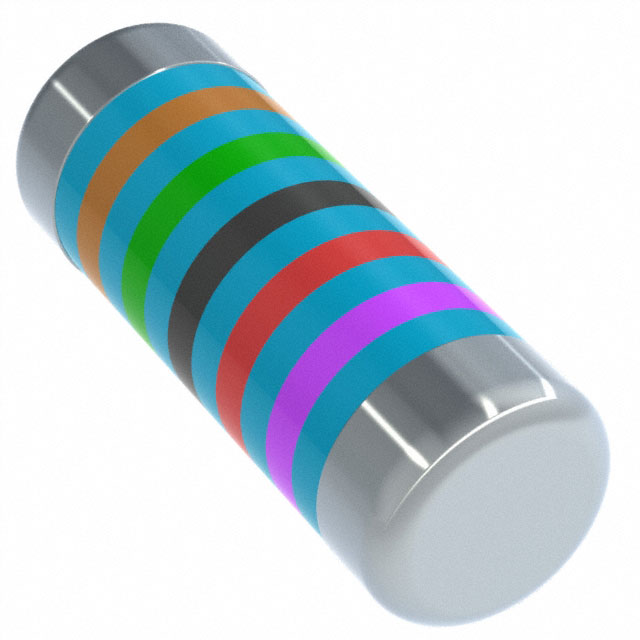

15 kOhms ±0.1% 1W Chip Resistor MELF, 0207 Automotive AEC-Q200 Metal Film
