CP-3600CR

Obsolete

Panasonic - BSG

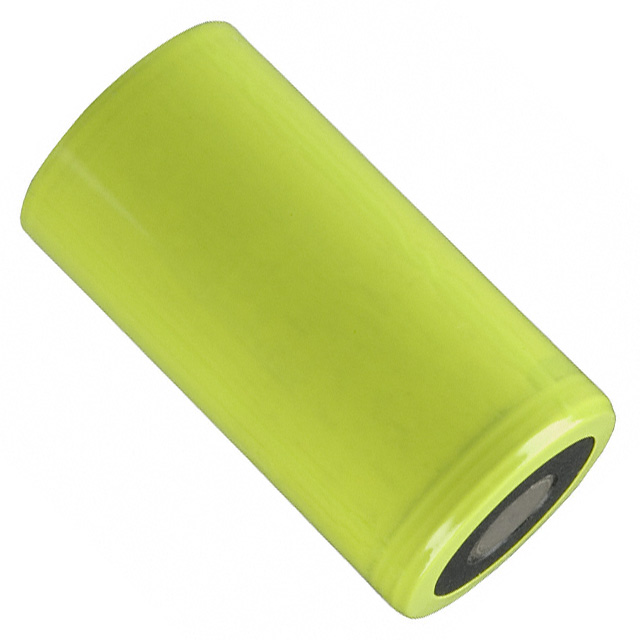

BATTERY NICAD 1.2V 3.6AH C

Search across all available documentation for this part.

Obsolete

Panasonic - BSG

BATTERY NICAD 1.2V 3.6AH C

Technical Specifications

Parameters and characteristics for this part

BATTERY NICAD 1.2V 3.6AH C

Part	Battery Chemistry	Standard Charge Current	Voltage - Rated	Termination Style	Standard Charge Time	Weight	Battery Cell Size	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Discharge Rate	Capacity
Panasonic - BSG CP-3600CR	Nickel Cadmium	360 mA	1.2 V	Button Top (Extending)	16 Hrs	89.81 g	C	25.5 mm	49.3 mm	1.94 in	1 "	720 mA	3.6 Ah

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

C 1.2 V Nickel Cadmium Battery Rechargeable (Secondary) 3.6Ah

Technical documentation and resources

No documents available
