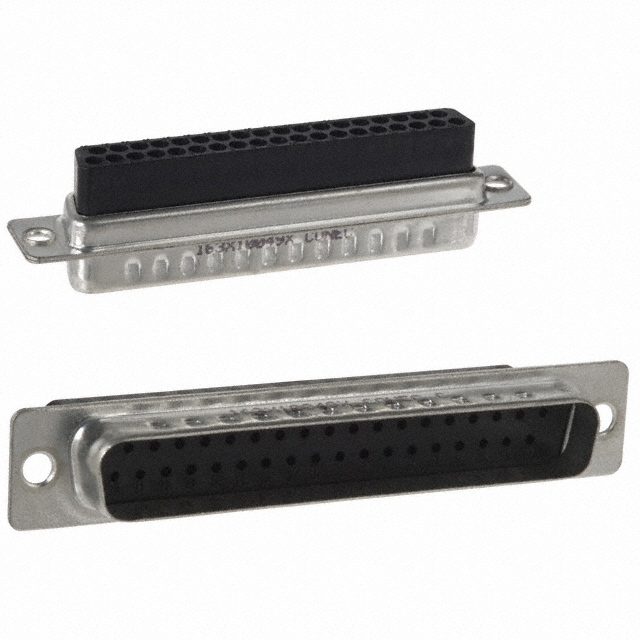

163X10049X

Active

Amphenol CONEC

D SUB HOUSING, PLUG, 37POS, DC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

D SUB HOUSING, PLUG, 37POS, DC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	163X10049X

Color	Black
Connector Style	D-Sub
Connector Type	Plug for Male Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	8 µm
Shell Finish Thickness	315 µin
Shell Size, Connector Layout	4 (DC, C)

Part	Color	Number of Rows	Connector Style	Connector Type	Shell Finish Thickness	Shell Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shell Size, Connector Layout	Flange Feature	Dielectric Material	Contact Type	Note	Features	Mounting Type
Amphenol CONEC 163X10049X	Black	2	D-Sub	Plug for Male Contacts	8 µm	315 µin	-55 °C	125 °C	37	4 (DC C)	Housing/Shell (Unthreaded)	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Contacts Not Included	Grounding Indents	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug for Male Contacts Housing D-Sub Connector 37 Position
