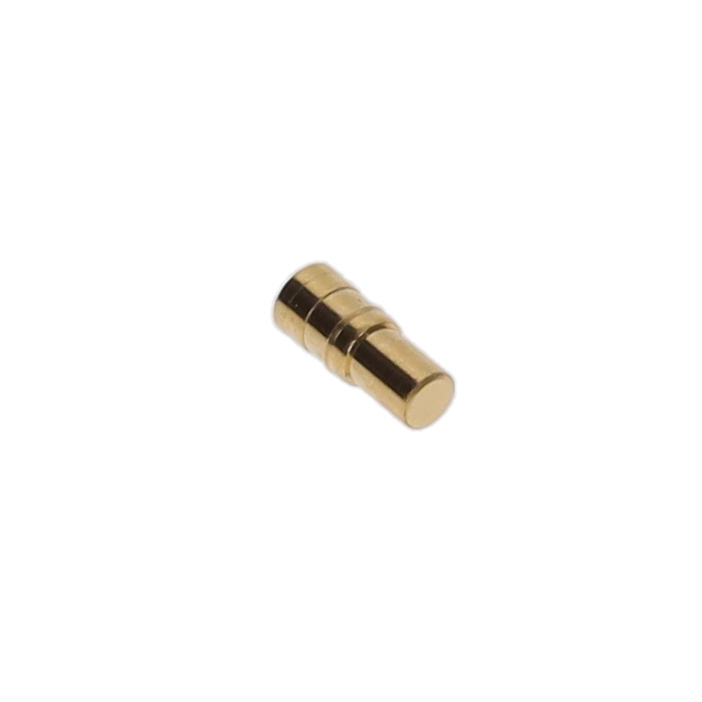

1950-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
TARGET CONTACT FOR SPRING PINS
Deep-Dive with AI
Search across all available documentation for this part.
1950-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
TARGET CONTACT FOR SPRING PINS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1950-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter | 1.47 mm |
| Flange Diameter | 0.058 in |
| Insulation | Non-Insulated |
| Length - Above Flange [custom] | 0.056 in |
| Length - Above Flange [custom] | 1.42 mm |
| Length - Below Flange [x] | 0.065 in |
| Length - Below Flange [x] | 1.65 mm |
| Length - Overall [x] | 0.14 " |
| Length - Overall [x] | 3.56 mm |
| Mounting Type | Surface Mount |
| Pin Size - Above Flange [diameter] | 0.058 in |
| Pin Size - Above Flange [diameter] | 1.47 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.74 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.60 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.41 | |||
| 3000 | $ 0.37 | |||
Description
General part information
1950-0 Series
PC Pin Terminal Connector Surface Mount Gold 0.058" (1.47mm) Dia
Documents
Technical documentation and resources
No documents available
