IR3103

Obsolete

Infineon Technologies

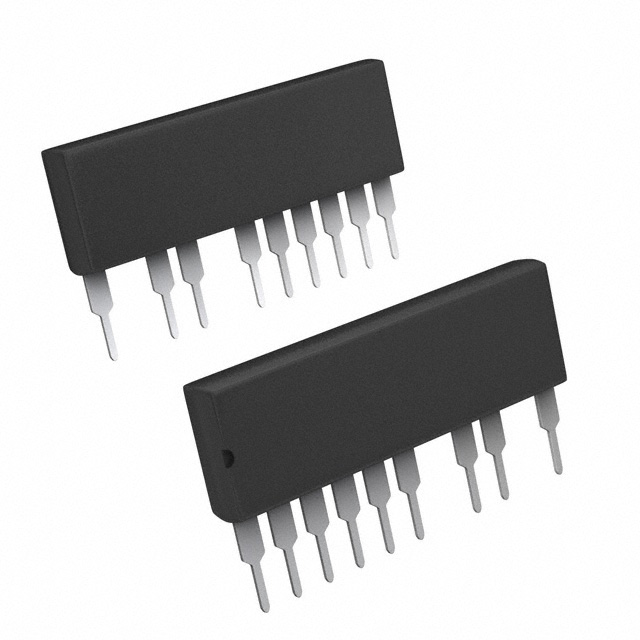

IC GATE DRVR HALF-BRIDGE 11SIP

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 11SIP

Technical Specifications

Parameters and characteristics for this part

Specification	IR3103

Channel Type	Independent
Driven Configuration	Half-Bridge
Gate Type	N-Channel MOSFET
High Side Voltage - Max (Bootstrap) [Max]	500 V
Input Type	Non-Inverting
Logic Voltage - VIL, VIH	2.9 V, 0.8 V
Mounting Type	Through Hole
Number of Drivers	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	11-SIP, 9 Leads
Supplier Device Package	11-SIP
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	10 VDC

Part	Mounting Type	Package / Case	Number of Drivers	Logic Voltage - VIL, VIH	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Driven Configuration	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	High Side Voltage - Max (Bootstrap) [Max]	Channel Type	Gate Type
Infineon Technologies IR3103	Through Hole	11-SIP 9 Leads	2	0.8 V 2.9 V	20 V	10 VDC	11-SIP	Half-Bridge	Non-Inverting	150 °C	-40 °C	500 V	Independent	N-Channel MOSFET
