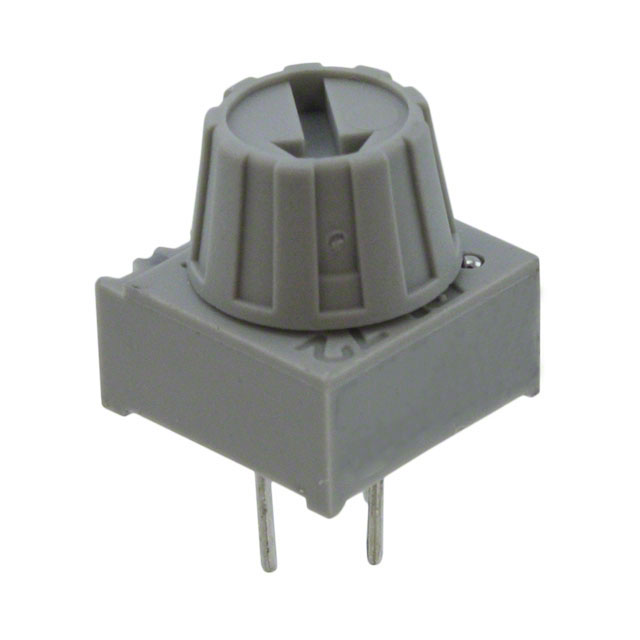

72PTR10KLF

Active

TT Electronics/BI

TRIMMER 10K OHM 0.5W PC PIN TOP

Search across all available documentation for this part.

Active

TT Electronics/BI

TRIMMER 10K OHM 0.5W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Temperature Coefficient	Power (Watts)	Power (Watts)	Adjustment Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Turns	Termination Style	Resistive Material	Mounting Type	Tolerance	Resistance
TT Electronics/BI 72PTR500KLF	100 ppm/°C	0.5 W	0.5 W	Top Adjustment	0.375 in	0.375 in	9.53 mm	9.53 mm	1	PC Pins	Cermet	Through Hole	10 %
TT Electronics/BI 72PTR200KLF	100 ppm/°C	0.5 W	0.5 W	Top Adjustment	0.375 in	0.375 in	9.53 mm	9.53 mm	1	PC Pins	Cermet	Through Hole	10 %	200000 Ohms
TT Electronics/BI 72PTR10KLF	100 ppm/°C	0.5 W	0.5 W	Top Adjustment	0.375 in	0.375 in	9.53 mm	9.53 mm	1	PC Pins	Cermet	Through Hole	10 %	10000 Ohms
TT Electronics/BI 72PTR250KLF	100 ppm/°C	0.5 W	0.5 W	Top Adjustment	0.375 in	0.375 in	9.53 mm	9.53 mm	1	PC Pins	Cermet	Through Hole	10 %	250 kOhms
TT Electronics/BI 72PTR25K	100 ppm/°C	0.5 W	0.5 W	Top Adjustment	0.375 in	0.375 in	9.53 mm	9.53 mm	1	PC Pins	Cermet	Through Hole	10 %	25 kOhms
TT Electronics/BI 72PTR5KLF	100 ppm/°C	0.5 W	0.5 W	Top Adjustment	0.375 in	0.375 in	9.53 mm	9.53 mm	1	PC Pins	Cermet	Through Hole	10 %	5 kOhms
TT Electronics/BI 72PTR500LF	100 ppm/°C	0.5 W	0.5 W	Top Adjustment	0.375 in	0.375 in	9.53 mm	9.53 mm	1	PC Pins	Cermet	Through Hole	10 %	500 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
