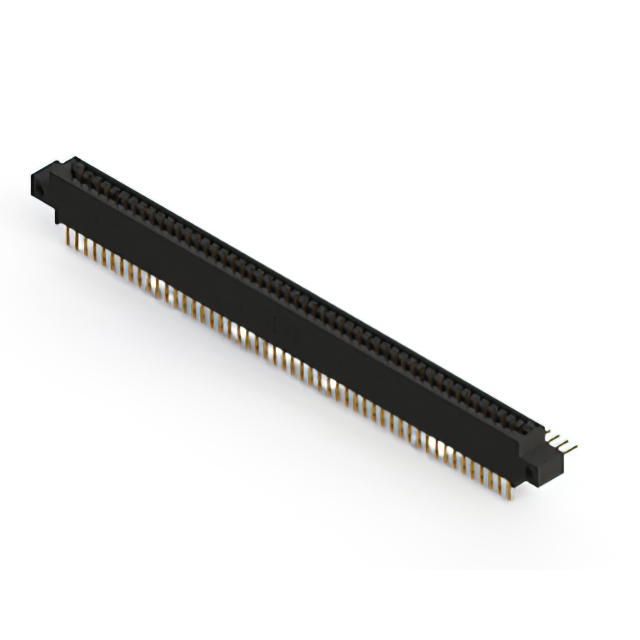

896-100-558-812

Active

EDAC Inc.

CONN EDGE DUAL FML 100POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-100-558-812

Active

EDAC Inc.

CONN EDGE DUAL FML 100POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 109.55

Description

General part information

896-100 Series

100 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	896-100-558-812	896-100 Series

Card Thickness [Max]	1.78 mm	1.78 mm
Card Thickness [Max]	0.07 in	0.07 in
Card Thickness [Min]	1.37 mm	1.37 mm
Card Thickness [Min]	0.054 "	0.054 "
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Features	-	Card Extender
Flange Feature	Side Mount Opening, Unthreaded	Top Opening, Flush Mount, M3, Threaded Insert, Side Mount Opening, Unthreaded, Side Opening, Top Mount Opening, Floating Bobbin, 4-40
Flange Feature	3.25 mm	3.25 mm
Flange Feature	0.128 in	0.128 in
Flange Feature	-	2.95 - 3.96 mm
Flange Feature	-	0.116 - 0.156 "
Gender	Female	Female
Material - Insulation	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Board Edge, Straddle Mount, Through Hole
Number of Positions	100	100
Number of Positions/Bay/Row [custom]	50	50
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.125 in	0.125 in
Pitch [x]	3.18 mm	3.18 mm
Read Out	Dual	Dual
Termination	Solder	Solder, Wire Wrap
Termination Rows	2	2

896-100 Series

CONN EDGE DUAL FML 100POS 0.125

Part	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Flange Feature	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Read Out	Contact Type	Material - Insulation	Color	Contact Finish	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Contact Material	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 896-100-559-207	Solder	125 °C	-40 °C	Female	2	0.125 in	3.18 mm	100	Flush Mount, M3, Threaded Insert, Top Opening	50	10 Áin	0.25 Ám	2	Dual	Cantilever	Polyphenylene Sulfide (PPS)	Black	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole, Right Angle	Copper Alloy
EDAC Inc. 896-100-558-812	Solder	125 °C	-40 °C	Female	2	0.125 in	3.18 mm	100	Side Mount Opening, Unthreaded	50	10 Áin	0.25 Ám	2	Dual	Cantilever	Polyphenylene Sulfide (PPS)	Black	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole, Right Angle	Copper Alloy	3.25 mm	0.128 in
EDAC Inc. 896-100-560-212	Solder	125 °C	-40 °C	Female	2	0.125 in	3.18 mm	100	Flush Mount, Side Opening, Unthreaded	50	10 Áin	0.25 Ám	2	Dual	Cantilever	Polyphenylene Sulfide (PPS)	Black	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge, Straddle Mount	Copper Alloy			3.25 mm	0.128 "	Card Extender
EDAC Inc. 896-100-558-803	Solder	125 °C	-40 °C	Female	2	0.125 in	3.18 mm	100	Floating Bobbin, Top Mount Opening	50	10 Áin	0.25 Ám	2	Dual	Cantilever	Polyphenylene Sulfide (PPS)	Black	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole, Right Angle	Copper Alloy			2.95 mm	0.116 in
EDAC Inc. 896-100-559-807	Solder	125 °C	-40 °C	Female	2	0.125 in	3.18 mm	100	M3, Threaded Insert, Top Mount Opening	50	10 Áin	0.25 Ám	2	Dual	Cantilever	Polyphenylene Sulfide (PPS)	Black	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole, Right Angle	Copper Alloy
EDAC Inc. 896-100-559-803	Solder	125 °C	-40 °C	Female	2	0.125 in	3.18 mm	100	Floating Bobbin, Top Mount Opening	50	10 Áin	0.25 Ám	2	Dual	Cantilever	Polyphenylene Sulfide (PPS)	Black	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole, Right Angle	Copper Alloy			2.95 mm	0.116 in
EDAC Inc. 896-100-560-808	Solder	125 °C	-40 °C	Female	2	0.125 in	3.18 mm	100	4-40, Threaded Insert, Top Mount Opening	50	10 Áin	0.25 Ám	2	Dual	Cantilever	Polyphenylene Sulfide (PPS)	Black	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge, Straddle Mount	Copper Alloy					Card Extender
EDAC Inc. 896-100-560-203	Solder	125 °C	-40 °C	Female	2	0.125 in	3.18 mm	100	Floating Bobbin, Flush Mount	50	10 Áin	0.25 Ám	2	Dual	Cantilever	Polyphenylene Sulfide (PPS)	Black	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge, Straddle Mount	Copper Alloy			2.95 mm	0.116 in	Card Extender
EDAC Inc. 896-100-560-804	Solder	125 °C	-40 °C	Female	2	0.125 in	3.18 mm	100	Top Mount Opening, Unthreaded	50	10 Áin	0.25 Ám	2	Dual	Cantilever	Polyphenylene Sulfide (PPS)	Black	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge, Straddle Mount	Copper Alloy			3.96 mm	0.156 in	Card Extender
EDAC Inc. 896-100-559-808	Solder	125 °C	-40 °C	Female	2	0.125 in	3.18 mm	100	4-40, Threaded Insert, Top Mount Opening	50	10 Áin	0.25 Ám	2	Dual	Cantilever	Polyphenylene Sulfide (PPS)	Black	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole, Right Angle	Copper Alloy
