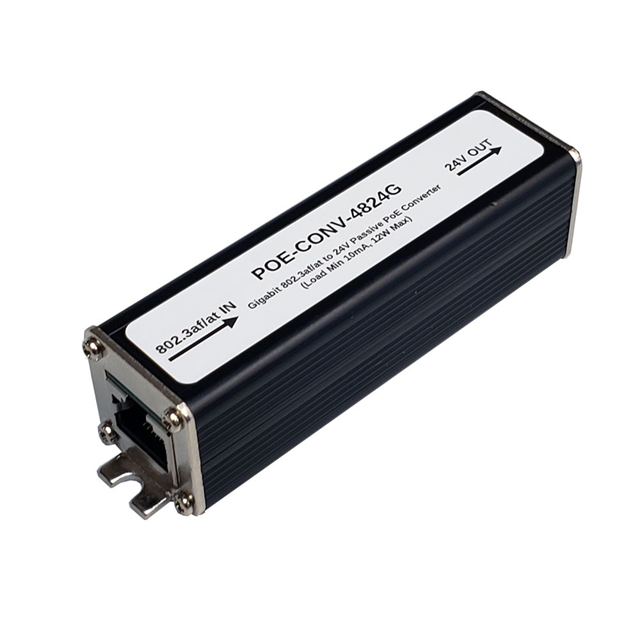

POE-CONV-4824G

Active

Tycon Systems Inc.

GIGABIT POE CONVERTER. 802.3AF P

Search across all available documentation for this part.

Active

Tycon Systems Inc.

GIGABIT POE CONVERTER. 802.3AF P

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	POE-CONV-4824G	POE-CO Series

Compliance	-	IEEE802.3at, IEEE802.3af
Data Rate	-	10 - 1000 Mbps
Efficiency	-	90 %
For Use With/Related Products	Cat5, Cat6, Cat6a, Cat5e, Ethernet	Ethernet, RJ45, Cat5, Cat6, Cat6a, Cat5e, Ethernet
Input Connector	-	RJ45 (Data, Power)
Mounting Type	-	Chassis Mount
Number of Ports	-	1
Operating Temperature	-	-30 ░C
Operating Temperature	-	60 °C
Output Connector	-	RJ45 (Data, Power)
Power (Watts) - Per Port	-	30 W
Size / Dimension	-	1.8 in
Size / Dimension	-	2.6 in
Size / Dimension	-	45.7 mm
Size / Dimension	-	1 "
Size / Dimension	-	66 mm
Size / Dimension	-	25.4 mm
Type	Converter	PoE (Power Over Ethernet), Passive Injector, Converter
Voltage - Input	-	48 VDC

GIGABIT POE CONVERTER. TWO 802.3

Part	Type	For Use With/Related Products	Compliance	Efficiency	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input	Number of Ports	Data Rate	Output Connector	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts) - Per Port
Tycon Systems Inc. POE-CONV-2AT-60	PoE (Power Over Ethernet)	Ethernet, RJ45
Tycon Systems Inc. POE-CONV-2AF-AT	Passive Injector, PoE (Power Over Ethernet)	Ethernet, RJ45	IEEE802.3af, IEEE802.3at	90 %	Chassis Mount	1.8 in	2.6 in	45.7 mm	1 "	66 mm	25.4 mm	48 VDC	1	10 Mbps, 100 Mbps, 1000 Mbps	RJ45 (Data, Power)	RJ45 (Data, Power)	-30 ░C	60 °C	30 W
Tycon Systems Inc. POE-CONV-4824G	Converter	Cat5, Cat5e, Cat6, Cat6a, Ethernet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Converter Cat5/Cat5e/Cat6/Cat6a, Ethernet
