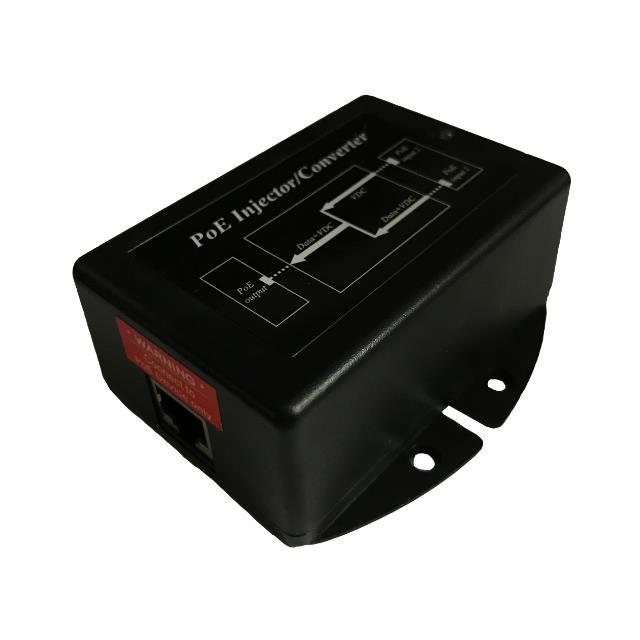

POE-CONV-2AT-60

Active

Tycon Systems Inc.

GIGABIT POE CONVERTER. TWO 802.3

Search across all available documentation for this part.

Active

Tycon Systems Inc.

GIGABIT POE CONVERTER. TWO 802.3

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	POE-CONV-2AT-60	POE-CO Series

Compliance	-	IEEE802.3at, IEEE802.3af
Data Rate	-	10 - 1000 Mbps
Efficiency	-	90 %
For Use With/Related Products	Ethernet, RJ45	Ethernet, RJ45, Cat5, Cat6, Cat6a, Cat5e, Ethernet
Input Connector	-	RJ45 (Data, Power)
Mounting Type	-	Chassis Mount
Number of Ports	-	1
Operating Temperature	-	-30 ░C
Operating Temperature	-	60 °C
Output Connector	-	RJ45 (Data, Power)
Power (Watts) - Per Port	-	30 W
Size / Dimension	-	1.8 in
Size / Dimension	-	2.6 in
Size / Dimension	-	45.7 mm
Size / Dimension	-	1 "
Size / Dimension	-	66 mm
Size / Dimension	-	25.4 mm
Type	PoE (Power Over Ethernet)	PoE (Power Over Ethernet), Passive Injector, Converter
Voltage - Input	-	48 VDC

GIGABIT POE CONVERTER. TWO 802.3

Part	Type	For Use With/Related Products	Compliance	Efficiency	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input	Number of Ports	Data Rate	Output Connector	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts) - Per Port
Tycon Systems Inc. POE-CONV-2AT-60	PoE (Power Over Ethernet)	Ethernet, RJ45
Tycon Systems Inc. POE-CONV-2AF-AT	Passive Injector, PoE (Power Over Ethernet)	Ethernet, RJ45	IEEE802.3af, IEEE802.3at	90 %	Chassis Mount	1.8 in	2.6 in	45.7 mm	1 "	66 mm	25.4 mm	48 VDC	1	10 Mbps, 100 Mbps, 1000 Mbps	RJ45 (Data, Power)	RJ45 (Data, Power)	-30 ░C	60 °C	30 W
Tycon Systems Inc. POE-CONV-4824G	Converter	Cat5, Cat5e, Cat6, Cat6a, Ethernet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 94.94

General part information

PoE (Power Over Ethernet) Ethernet, RJ45
