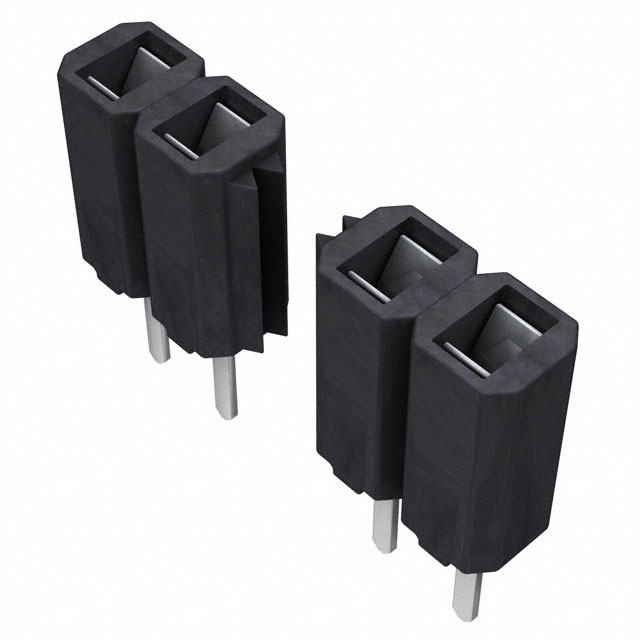

SSA-112-S-T

Active

Samtec Inc.

CONN SOCKET STRIP SKT 12 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET STRIP SKT 12 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Technical Specifications

Parameters and characteristics for this part

Specification	SSA-112-S-T

Connector Type	Breakaway, Receptacle
Contact Length - Post	3.84 mm
Contact Length - Post	0.151 in
Contact Material	Phosphor Bronze
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.85 mm
Insulation Height	0.23 in
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	1000 VDC

Part	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Pitch - Mating	Pitch - Mating	Voltage Rating	Insulation Material	Contact Type	Contact Material	Mounting Type	Number of Rows	Fastening Type	Number of Positions Loaded	Connector Type	Number of Positions	Insulation Height	Insulation Height	Termination	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. SSA-112-S-T	3.84 mm	0.151 in	105 ░C	-55 °C	Black	0.1 in	2.54 mm	1000 VDC	Polyester Polyethylene Terephthalate (PET)	Female Socket	Phosphor Bronze	Through Hole	1	Push-Pull	All	Breakaway Receptacle	12	5.85 mm	0.23 in	Solder	UL94 V-0
Samtec Inc. SSA-112-S-G	3.84 mm	0.151 in	125 °C	-55 °C	Black	0.1 in	2.54 mm	1000 VDC	Polyester Polyethylene Terephthalate (PET)	Female Socket	Phosphor Bronze	Through Hole	1	Push-Pull	All	Breakaway Receptacle	12	5.85 mm	0.23 in	Solder	UL94 V-0	10 çin	0.25 çm	Gold
Samtec Inc. SSA-112-W-T-RA			105 ░C	-55 °C	Black	0.1 in	2.54 mm	1000 VDC	Polyester Polyethylene Terephthalate (PET)	Female Socket	Phosphor Bronze	Through Hole Right Angle	1	Push-Pull	All	Breakaway Receptacle	12	2.54 mm	0.1 in	Wire Wrap	UL94 V-0				14.61 mm	0.575 in
Samtec Inc. SSA-112-W-G-RA			125 °C	-55 °C	Black	0.1 in	2.54 mm	1000 VDC	Polyester Polyethylene Terephthalate (PET)	Female Socket	Phosphor Bronze	Through Hole Right Angle	1	Push-Pull	All	Breakaway Receptacle	12	2.54 mm	0.1 in	Wire Wrap	UL94 V-0	10 çin	0.25 çm	Gold	14.61 mm	0.575 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Receptacle, Breakaway Connector 0.100" (2.54mm) Through Hole Tin
