XAP-10V-1

Active

JST Sales America Inc.

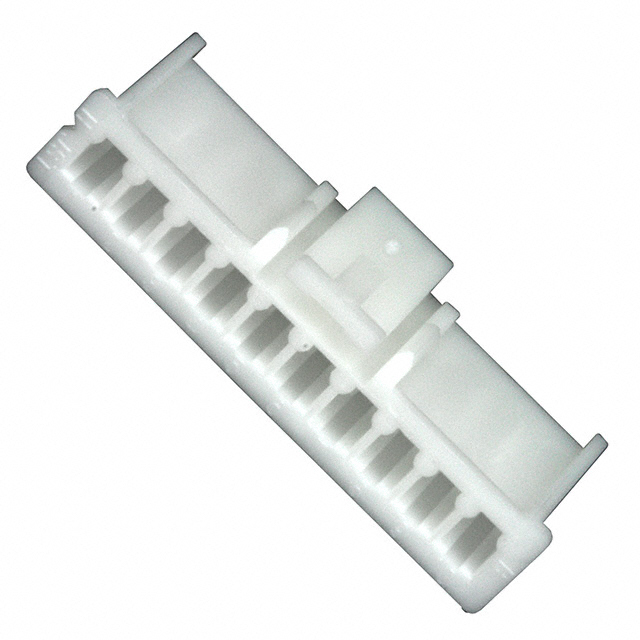

CONN RCPT HSG 10POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

XAP-10V-1

Active

JST Sales America Inc.

CONN RCPT HSG 10POS 2.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.29
		10	$ 0.25
		25	$ 0.22
		50	$ 0.20
		100	$ 0.19
		250	$ 0.17
		500	$ 0.17
		1000	$ 0.14
		2500	$ 0.13

Description

General part information

XAP Series

10 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet

Specification	XAP-10V-1	XAP Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	10	4 - 20
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm

Part	Fastening Type	Number of Positions	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Note	Mounting Type	Contact Type	Contact Termination	Connector Type	Insulation Material	Color	Pitch [x]	Pitch [x]
JST Sales America Inc. XAP-14V-1	Latch Lock	14	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-20V-1	Latch Lock	20	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-15V-1	Latch Lock	15	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-03V-1	Latch Lock		1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-13V-1	Latch Lock	13	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-10V-1	Latch Lock	10	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-07V-1	Latch Lock	7	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-11V-1	Latch Lock	11	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-12V-1	Latch Lock	12	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-05V-1	Latch Lock		1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
