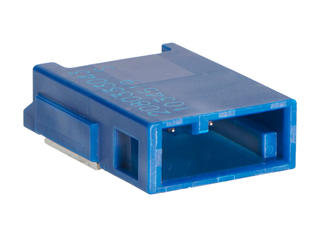

ConnTAK50 Header, Single Row, Right-Angle, Surface Mount, 6 Circuits, Key C, Blue
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
3D models and CAD resources for this part
Technical documentation and resources
ConnTAK50 Header, Single Row, Right-Angle, Surface Mount, 6 Circuits, Key C, Blue
| Part | Contact Shape | Mounting Type | Number of Rows | Contact Finish - Mating | Insulation Material | Number of Positions Loaded | Insulation Color | Termination | Fastening Type | Pitch - Mating | Current Rating | Current Rating | Connector Type | Voltage Rating | Voltage Rating (Type) | Contact Type | Number of Positions | Shrouding | Contact Material | Style | Material Flammability Rating | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish Thickness - Mating | Insulation Height | Features | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Square | Right Angle Surface Mount | 1 | Tin | Glass Filled Nylon 9T Polyamide (PA9T) | All | Blue | Solder | Latch Holder | 0.071 in | 0 A | Varies by Wire Gauge | Header | 14 VDC | DC | Male Pin | 6 | Shrouded - 4 Wall | Brass | Board Cable/Wire | UL94 V-0 | -40 °C | 105 °C | 39.4 µin | 0.253 in | ||
 Molex | |||||||||||||||||||||||||||
 Molex | |||||||||||||||||||||||||||
 Molex | Square | Right Angle Surface Mount | 1 | Tin | Glass Filled Nylon 9T Polyamide (PA9T) | All | Violet | Solder | Latch Holder | 0.071 in | 0 A | Varies by Wire Gauge | Header | 14 VDC | DC | Male Pin | 6 | Shrouded - 4 Wall | Brass | Board Cable/Wire | UL94 V-0 | -40 °C | 105 °C | 39.4 µin | 0.253 in | ||
 Molex | |||||||||||||||||||||||||||
 Molex | Square | Right Angle Surface Mount | 1 | Tin | Glass Filled Nylon 9T Polyamide (PA9T) | All | Natural | Solder | Latch Holder | 0.071 in | 0 A | Varies by Wire Gauge | Header | 14 VDC | DC | Male Pin | 4 | Shrouded - 4 Wall | Brass | Board Cable/Wire | UL94 V-0 | -40 °C | 105 °C | 39.4 µin | 0.253 in | ||
 Molex | Rectangular | Right Angle Surface Mount | 1 | Tin | Glass Filled Nylon 9T Polyamide (PA9T) | All | Black | Solder | Push-Pull | 0.071 in | 0 A | Varies by Wire Gauge | Header | Male Pin | 4 | Shrouded - 4 Wall | Brass | Board Cable/Wire | UL94 V-0 | -40 °C | 105 °C | 39.4 µin | |||||
 Molex | Square | Right Angle Surface Mount | 1 | Tin | Glass Filled Nylon 9T Polyamide (PA9T) | All | Blue | Solder | Latch Holder | 0.071 in | 0 A | Varies by Wire Gauge | Header | 14 VDC | DC | Male Pin | 3 | Shrouded - 4 Wall | Brass | Board Cable/Wire | UL94 V-0 | -40 °C | 105 °C | 39.4 µin | 0.253 in | ||
 Molex | |||||||||||||||||||||||||||
 Molex | Square | Right Angle Surface Mount | 1 | Tin | Nylon Polyamide (PA) | All | Natural | Solder | Push-Pull | 0.071 in | 3 A | Header | 14 VDC | DC | Male Pin | 5 | Shrouded - 4 Wall | Brass | Board Cable/Wire | UL94 V-0 | -40 °C | 105 °C | 39.4 µin | 0.214 in | Solder Retention | Tin |
