Description
General part information
35216 Series

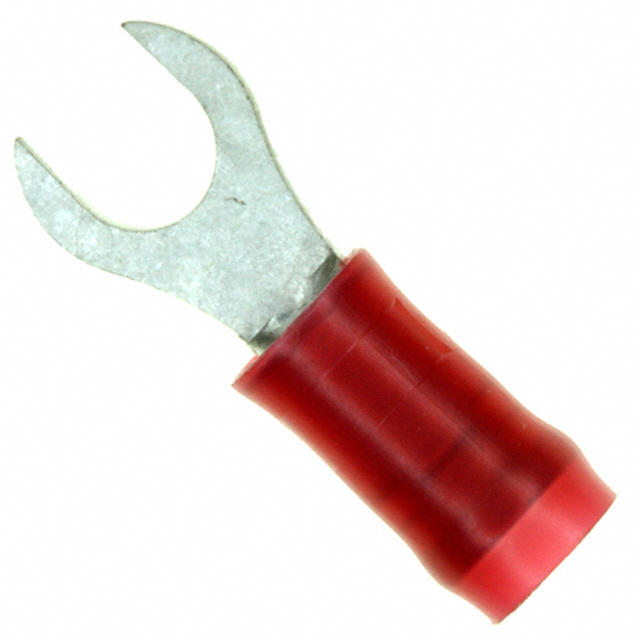

Slotted Ring Tongue Terminal, 22 – 16 AWG, #6 / M3.5 Stud, 3.68 mm [.145 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PIDG
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-35216-1 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Insulation Diameter (Max) | 0.14 in |
| Insulation Diameter (Min) | 0.105 in |
| Length - Overall | 0.828 in |
| Material - Insulation | Polyamide, PA, Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Slotted |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.312 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
