Specification	1115-6125

Adapter Series	SMP
Adapter Series Size	2.92 mm
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Between Series
Convert From (Adapter End)	SMP Plug, Male Pin
Convert To (Adapter End)	Jack, Female Socket
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Model	OS-2.9
Convert To (Adapter End) Size	2.92 mm
Convert To (Adapter End) Type	Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Features	Smooth Bore
Frequency - Max	40 Gbps
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight

1115-61 Series

Part	Adapter Type	Features	Convert To (Adapter End) Size	Convert To (Adapter End) Model	Convert To (Adapter End)	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Conversion Type	Impedance	Frequency - Max	Mounting Feature	Mounting Type	Center Gender	Fastening Type	Convert From (Adapter End)	Adapter Series	Adapter Series Size	Center Contact Plating	Style	Dielectric Material	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Material	Body Material	Convert From (Adapter End) Jack Size	Convert From (Adapter End) Type
McGill Microwave Systems 1115-6126	Plug to Jack	Full Detent	2.92 mm	OS-2.9	Female Socket Jack	Jack	Female Socket	Between Series	50 Ohm	40 Gbps	Flange	Panel Mount	Female Male	Snap-On Threaded	Male Pin SMPM Plug	SMPM	2.92 mm	Gold	Straight	Polytetrafluoroethylene (PTFE)	500 cycles	-65 °C	165 °C	Beryllium Copper	Stainless Steel
McGill Microwave Systems 1115-6128	Jack to Jack		2.92 mm	OS-2.9	Female Socket Jack	Jack	Female Socket	Same Series	50 Ohm	40 Gbps	Flange	Panel Mount	Female	Threaded			2.92 mm	Gold	Straight		500 cycles	-65 °C	165 °C	Beryllium Copper	Stainless Steel	2.92 mm	Female Socket

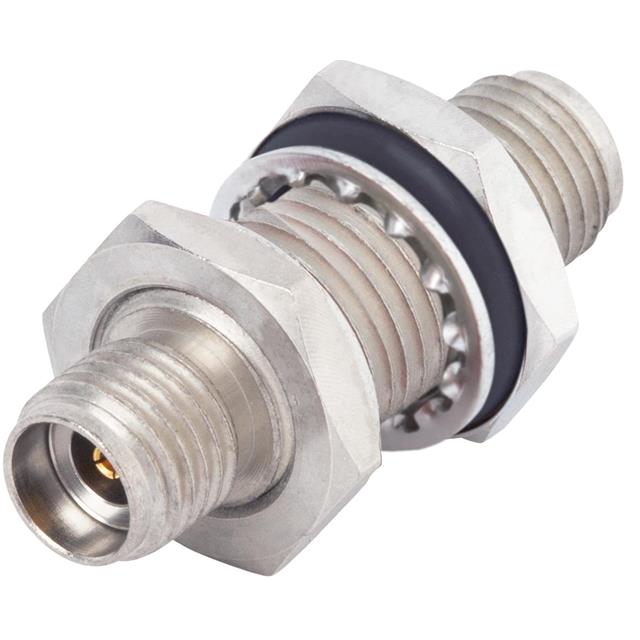

McGill Microwave Systems 1115-6131	Jack to Jack		2.92 mm	OS-2.9	Female Socket Jack	Jack	Female Socket	Same Series	50 Ohm	40 Gbps	Bulkhead	Panel Mount	Female	Threaded			2.92 mm	Gold	Straight	Polyetherimide (PEI)	500 cycles	-65 °C	165 °C	Beryllium Copper	Stainless Steel	2.92 mm	Female Socket
McGill Microwave Systems 1115-6127	Plug to Jack	Smooth Bore	2.92 mm	OS-2.9	Female Socket Jack	Jack	Female Socket	Between Series	50 Ohm	40 Gbps	Flange	Panel Mount	Female Male	Snap-On Threaded	Male Pin SMPM Plug	SMPM	2.92 mm	Gold	Straight	Polytetrafluoroethylene (PTFE)	500 cycles	-65 °C	165 °C	Beryllium Copper	Stainless Steel
McGill Microwave Systems 1115-6124	Plug to Jack	Full Detent	2.92 mm	OS-2.9	Female Socket Jack	Jack	Female Socket	Between Series	50 Ohm	40 Gbps	Flange	Panel Mount	Female Male	Snap-On Threaded	Male Pin SMP Plug	SMP	2.92 mm	Gold	Straight	Polytetrafluoroethylene (PTFE)	500 cycles	-65 °C	165 °C	Beryllium Copper	Stainless Steel
McGill Microwave Systems 1115-6125	Plug to Jack	Smooth Bore	2.92 mm	OS-2.9	Female Socket Jack	Jack	Female Socket	Between Series	50 Ohm	40 Gbps	Flange	Panel Mount	Female Male	Snap-On Threaded	Male Pin SMP Plug	SMP	2.92 mm	Gold	Straight	Polytetrafluoroethylene (PTFE)	500 cycles	-65 °C	165 °C	Beryllium Copper	Stainless Steel
