CLM-103-02-H-D-TR

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS LOW PROFILE DUAL-WIPE SOCKET, 1.00MM PITCH

CLM-103-02-H-D-TR

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS LOW PROFILE DUAL-WIPE SOCKET, 1.00MM PITCH

Description Specifications Series Pricing CAD Documents

Description

General part information

CLM Series

BOARD TO BOARD & MEZZANINE CONNECTORS LOW PROFILE DUAL-WIPE SOCKET, 1.00MM PITCH

Technical Specifications

Parameters and characteristics for this part

Specification	CLM-103-02-H-D-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 µin
Contact Type	Female Socket
Current Rating (Per Contact)	2.8 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.084 in
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.039 in
Row Spacing - Mating	0.039 in
Style	Board
Termination	Solder

CLM Series

...

Part	Mounting Type	Connector Type	Row Spacing - Mating	Number of Positions Loaded	Insulation Height	Contact Finish - Mating	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Contact Finish Thickness - Mating	Features	Pitch - Mating	Contact Finish - Post	Insulation Color	Current Rating (Per Contact)	Contact Type	Termination	Fastening Type	Style	Number of Rows	Contact Shape	Contact Material	Insulation Material
Samtec Inc. CLM-118-02-H-D-K-TR	Surface Mount	Receptacle	0.039 in	All	0.084 in	Gold	36	125 °C	-55 °C	UL94 V-0	30 µin	Pick and Place	0.039 in	Gold	Black	2.8 A	Female Socket	Solder	Push-Pull	Board	2
Samtec Inc. CLM-103-02-H-D-TR	Surface Mount	Receptacle	0.039 in	All	0.084 in	Gold	6	125 °C	-55 °C	UL94 V-0	30 µin		0.039 in	Gold	Black	2.8 A	Female Socket	Solder	Push-Pull	Board	2
Samtec Inc. CLM-130-02-L-D	Surface Mount	Receptacle	0.039 in	All	0.084 in	Gold	60	125 °C	-55 °C	UL94 V-0	10 µin		0.039 in	Tin	Black	2.8 A	Female Socket	Solder	Push-Pull	Board	2	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. CLM-105-02-L-D-K-TR	Surface Mount	Receptacle	0.039 in	All	0.084 in	Gold	10	125 °C	-55 °C	UL94 V-0	10 µin	Pick and Place	0.039 in	Tin	Black	2.8 A	Female Socket	Solder	Push-Pull	Board	2	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. CLM-111-02-L-D-A-P	Surface Mount	Receptacle	0.039 in	All	0.084 in	Gold	22	125 °C	-55 °C	UL94 V-0	10 µin	Board Guide Pick and Place	0.039 in	Tin	Black	2.8 A	Female Socket	Solder	Push-Pull	Board	2	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. CLM-120-02-FM-D-P	Surface Mount	Receptacle	0.039 in	All	0.084 in	Gold	40	125 °C	-55 °C	UL94 V-0	3 µin	Pick and Place	0.039 in	Tin	Black	2.8 A	Female Socket	Solder	Push-Pull	Board	2

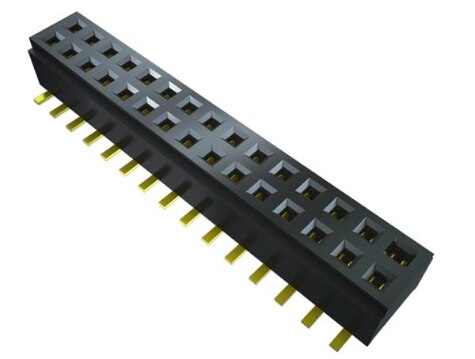

Samtec Inc. CLM-145-02-F-D-PA-TR	Surface Mount	Receptacle	0.039 in	All	0.084 in	Gold	90	125 °C	-55 °C	UL94 V-0	3 µin	Pick and Place	0.039 in	Tin	Black	2.8 A	Female Socket	Solder	Push-Pull	Board	2
Samtec Inc. CLM-140-02-G-D	Surface Mount	Receptacle	0.039 in	All	0.084 in	Gold	80	125 °C	-55 °C	UL94 V-0	10 µin		0.039 in	Gold	Black	2.8 A	Female Socket	Solder	Push-Pull	Board	2
Samtec Inc. CLM-106-02-H-D-A	Surface Mount	Receptacle	0.039 in	All	0.084 in	Gold	12	125 °C	-55 °C	UL94 V-0	30 µin	Board Guide	0.039 in	Gold	Black	2.8 A	Female Socket	Solder	Push-Pull	Board	2
Samtec Inc. CLM-116-02-L-D-TR	Surface Mount	Receptacle	0.039 in	All	0.084 in	Gold	32	125 °C	-55 °C	UL94 V-0	10 µin		0.039 in	Tin	Black	2.8 A	Female Socket	Solder	Push-Pull	Board	2	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

CLM-103-02-H-D-TR | Datasheet
