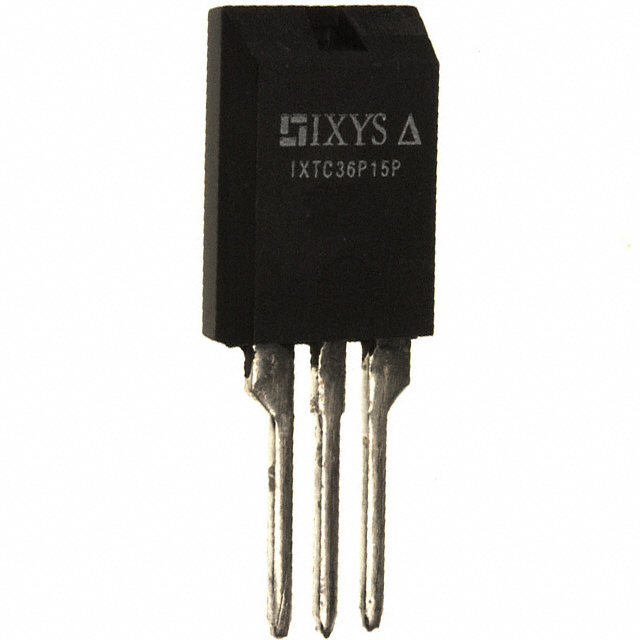

Specification	IXTC36P15P

Current - Continuous Drain (Id) (Tc)	22 A
Drain to Source Voltage (Vdss)	150 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	P-Channel
Gate Charge (Max)	55 nC
Input Capacitance (Ciss) (Max)	2950 pF
Mounting Type	Through Hole
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-55 °C
Package / Case	ISOPLUS220™
Package Name	ISOPLUS220™
Power Dissipation (Max)	150 W
Rds On (Max)	120 mOhm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max)	5 V

IXTC36 Series

Part	Mounting Type	Package Name	Power Dissipation (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Drive Voltage (Max Rds On, Min Rds On)	Technology	Vgs(th) (Max)	Vgs (Max)	Package / Case	Rds On (Max)	Current - Continuous Drain (Id) (Tc)	Gate Charge (Max)	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max)	FET Type
LITTELFUSE IXTC36P15P	Through Hole	ISOPLUS220™	150 W	-55 °C	175 °C	10 V	MOSFET (Metal Oxide)	5 V	20 V	ISOPLUS220™	120 mOhm	22 A	55 nC	150 V	2950 pF	P-Channel
