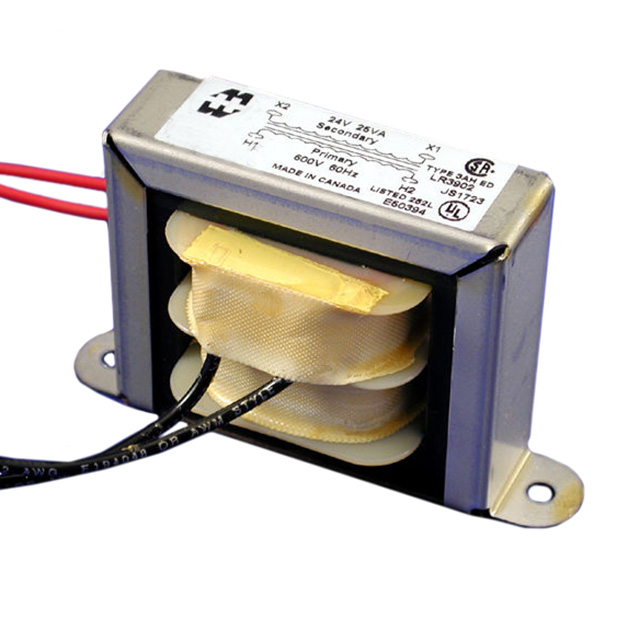

PHC25JGA
ActiveHammond Manufacturing
POWER TRANSFORMER 25VA 4 TERMINAL WIRE LEAD FLANGE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
PHC25JGA
ActiveHammond Manufacturing
POWER TRANSFORMER 25VA 4 TERMINAL WIRE LEAD FLANGE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PHC25JGA |
|---|---|
| Center Tap | False |
| Current - Output (Max) [Max] | 1.04 A |
| Height - Seated (Max) [Max] [z] | 58.67 mm |
| Mounting Type | Chassis Mount |
| Power - Max [Max] | 25 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension [x] | 93.73 mm |
| Size / Dimension [y] | 54.1 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Primary | 120 V |
| Voltage - Secondary (Full Load) | 24 V |
| Weight | 1.4 lbs |
| Weight | 635 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 41.01 | |
| 10 | $ 36.89 | |||
| 25 | $ 35.35 | |||
| 50 | $ 34.23 | |||
| 100 | $ 33.14 | |||
| 250 | $ 31.75 | |||
Description
General part information
PHC25 Series
POWER TRANSFORMER 25VA 4 TERMINAL WIRE LEAD FLANGE MOUNT
Documents
Technical documentation and resources
No documents available
