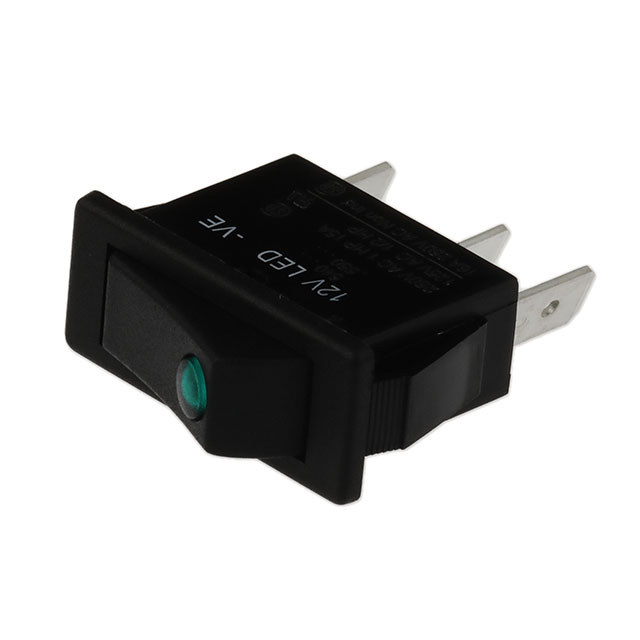

C5503PLLAB
ActiveBULGIN LIMITED
SWITCH ROCKER DPDT 20A 250V
Deep-Dive with AI
Search across all available documentation for this part.
C5503PLLAB
ActiveBULGIN LIMITED
SWITCH ROCKER DPDT 20A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C5503PLLAB |
|---|---|
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, UL |
| Circuit | DPDT |
| Current Rating (Amps) | 16 A |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 30 mm |
| Panel Cutout Dimensions [y] | 22.2 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 3.51 | |
| 10 | $ 3.03 | |||
| 25 | $ 2.86 | |||
| 50 | $ 2.73 | |||
| 100 | $ 2.61 | |||
| 250 | $ 2.46 | |||
| 500 | $ 2.36 | |||
| 1000 | $ 2.25 | |||
Description
General part information
C5503PL Series
Rocker Switch DPDT 16A (AC) 250 V Panel Mount, Snap-In
