MS3120F20-41S
ActiveAmphenol Industrial Operations

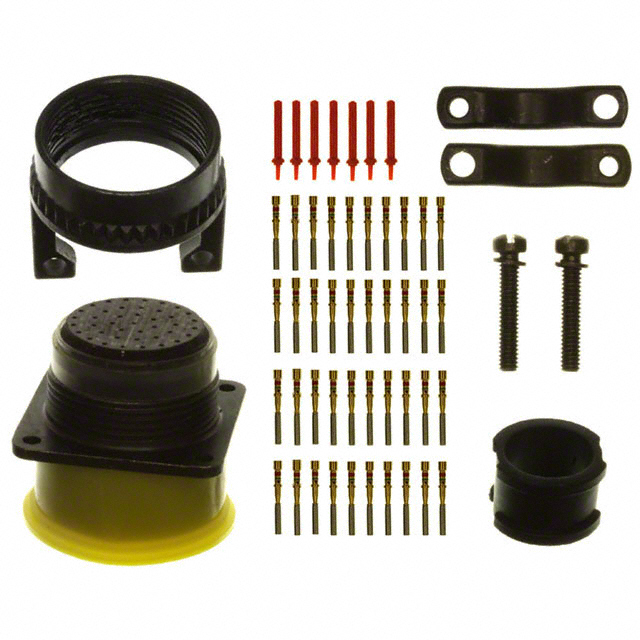

CONN RCPT FMALE 41POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3120F20-41S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 41POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3120F20-41S | MS3120F20 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | - | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell, Strain Relief |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | 41 | 39 - 41 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 20 |
| Shell Size - Insert | - | 16 |
| Shell Size - Insert [Max] | 41 | 39 - 41 |
| Shell Size - Insert [Min] | 20 | 20 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | - | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 114.01 | |
| 10 | $ 104.62 | |||
| 100 | $ 91.88 | |||
MS3120F20 Series
CONN RCPT MALE 16POS GOLD CRIMP
| Part | Number of Positions | Color | Backshell Material, Plating | Features | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Shell Material | Orientation | Mounting Feature | Connector Type | Shell Finish | Qualification | Insert Material | Shell Size - Insert [Max] [diameter] | Shell Size - Insert [Min] [diameter] | Grade | Shielding | Contact Finish - Mating | Ingress Protection | Fastening Type | Applications | Contact Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Number of Positions | Voltage Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3120F20-16P | 16 | Olive Drab | Aluminum, Olive Drab Chromate over Cadmium | Backshell, Cable Clamp | Crimp | -55 °C | 125 °C | Metal | Aluminum | N | Flange | Male Pins, Receptacle | Olive Drab Chromate over Cadmium | MIL-DTL-26482 Series I | Neoprene | 20 | 16 | Military | Unshielded | Gold | Environment Resistant | Bayonet Lock | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Copper Alloy | |||||
Amphenol Industrial Operations MS3120F20-41P | Olive Drab | Aluminum, Olive Drab Chromate over Cadmium | Backshell, Cable Clamp | Crimp | -55 °C | 125 °C | Metal | Aluminum | N | Flange | Male Pins, Receptacle | Olive Drab Chromate over Cadmium | MIL-DTL-26482 Series I | Neoprene | Military | Unshielded | Gold | Environment Resistant | Bayonet Lock | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Copper Alloy | 20 | 41 | 41 | |||||
Amphenol Industrial Operations MS3120F20-39P | Olive Drab | Strain Relief | Crimp | -55 °C | 125 °C | Metal | Aluminum | N | Flange | Male Pins, Receptacle | Olive Drab Chromate over Cadmium | MIL-DTL-26482 Series I | Neoprene | Military | Unshielded | Gold | Environment Resistant | Bayonet Lock | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Copper Alloy | 20 | 39 | 39 | 600 VAC | 7.5 A, 13 A | ||||
Amphenol Industrial Operations MS3120F20-41S | Olive Drab | Aluminum, Olive Drab Chromate over Cadmium | Backshell, Cable Clamp | Crimp | -55 °C | 125 °C | Metal | Aluminum | N | Flange | Receptacle, Female Sockets | Olive Drab Chromate over Cadmium | MIL-DTL-26482 Series I | Neoprene | Military | Unshielded | Gold | Environment Resistant | Bayonet Lock | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Copper Alloy | 20 | 41 | 41 | |||||
Amphenol Industrial Operations MS3120F20-41S(LC) |
Description
General part information
MS3120F20 Series
41 Position Circular Connector Receptacle, Female Sockets Crimp
