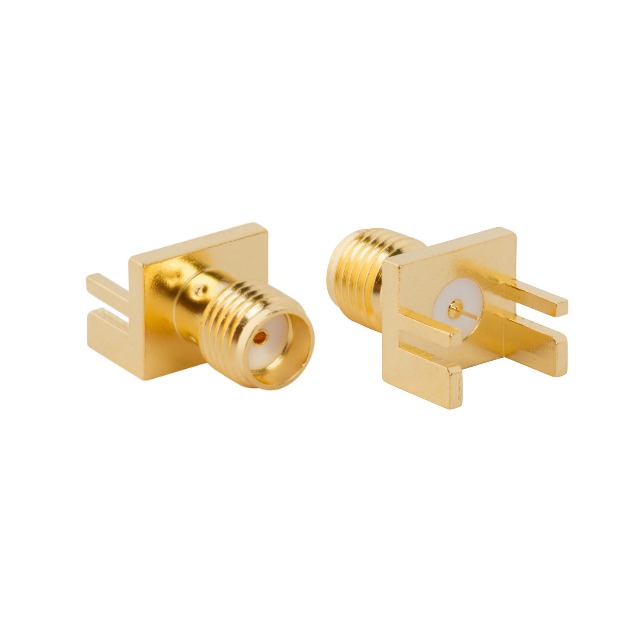

Specification	901-10044-6RFX

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	End Launch, Board Edge
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

901-10 Series

...

Part	Number of Ports	Connector Type	Center Contact Material	Housing Color	Cable Group Size	Cable Group	Frequency - Max	Shield Termination	Mounting Type	Fastening Type	Contact Termination	Connector Style	Impedance	Body Finish	Dielectric Material	Mating Cycles	Body Material	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Mounting Feature	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Convert From (Adapter End)	Adapter Series	Adapter Type	Center Gender	Style	Conversion Type	Ingress Protection Description	Ingress Protection IP Rating	Includes Total Count	Includes
McGill Microwave Systems 901-10784	1	Female Socket Plug	Beryllium Copper	Gold	1.13 mm	Coaxial Cable	7.1 GHz	Crimp	45° Angle Free Hanging (In-Line)	Threaded	Solder	RP-SMA	50 Ohm	Gold	Polytetrafluoroethylene (PTFE)	500 cycles	Brass	335 V	-65 °C	165 °C	Gold
McGill Microwave Systems 901-10752	1	Female Socket Jack	Beryllium Copper	Gold	0.81 mm	OD Coaxial Cable	6000 MHz	Crimp	Panel Mount	Threaded	Solder	SMA	50 Ohm	Gold	Polytetrafluoroethylene (PTFE)	500 cycles	Brass	335 V	-65 °C	165 °C	Gold	Bulkhead Front Side Nut
McGill Microwave Systems 901-10511-3	1	Female Socket Jack					26.5 GHz	Solder	Board Edge End Launch	Threaded	Solder	SMA	50 Ohm			500 cycles		170 V	-65 °C	165 °C		Flange
McGill Microwave Systems 901-10384			Beryllium Copper				4 GHz		Panel Mount	Bayonet Lock Threaded			50 Ohm	Nickel	Polytetrafluoroethylene (PTFE)		Brass		-65 °C	165 °C	Gold	Bulkhead	Female Socket	SMA Jack	BNC Jack Female Socket	BNC to SMA	Jack to Jack	Female	Straight	Between Series	Dust Tight Waterproof	IP67	3 pcs	Connector Lockwasher Nut
McGill Microwave Systems 901-10235	1	Female Socket Jack	Beryllium Copper	Gold			2 GHz	Solder	Right Angle Through Hole	Threaded	Solder	SMA	50 Ohm	Gold	Polytetrafluoroethylene (PTFE)	500 cycles	Stainless Steel	335 V	-65 °C	165 °C	Gold
McGill Microwave Systems 901-10007			Brass				4 GHz		Free Hanging (In-Line)	Snap-On Threaded			50 Ohm	Gold Passivated	Polytetrafluoroethylene (PTFE)		Beryllium Copper Stainless Steel		-40 °C	155 °C	Gold		Male Pin	1.0/2.3 Plug	Male Pin SMA Plug	SMA to 1.0/2.3	Plug to Plug	Male	Straight	Between Series
McGill Microwave Systems 901-10803	1	Jack Male Pin	Beryllium Copper	Gold		RG-178	7.1 GHz	Crimp	Panel Mount	Threaded	Solder	RP-SMA	50 Ohm	Gold	Polytetrafluoroethylene (PTFE)	500 cycles	Brass	335 V	-65 °C	165 °C	Gold	Bulkhead Front Side Nut									Dust Tight Waterproof	IP67
McGill Microwave Systems 901-10165	1	Female Socket Jack	Beryllium Copper Brass	Gold	1.32 mm	Coaxial Cable	3 GHz	Crimp	Panel Mount	Threaded	Solder	SMA	50 Ohm	Gold	Polytetrafluoroethylene (PTFE)	500 cycles	Brass		-65 °C	165 °C	Gold	Bulkhead Front Side Nut											6 pcs	Connector Contact Insulators Nut Sleeve
McGill Microwave Systems 901-10097			Brass				6000 MHz		Panel Mount	Snap-On Threaded			50 Ohm	Gold	Polytetrafluoroethylene (PTFE)	100 cycles	Brass		-65 °C	165 °C	Gold	Bulkhead	Male Pin	U.FL (UMCC) Jack	Male Pin RP-SMA Jack	AMC RP-SMA to U.FL (UMCC)	Jack to Jack	Male	Straight	Between Series			3 pcs	Connector Lockwasher Nut
McGill Microwave Systems 901-10116	1	Female Socket Jack	Beryllium Copper	Gold	1.13 mm	Coaxial Cable	3 GHz	Crimp	Panel Mount	Threaded	Solder	SMA	50 Ohm	Gold	Polytetrafluoroethylene (PTFE)	500 cycles	Brass		-65 °C	165 °C	Gold	Bulkhead Front Side Nut											6 pcs	Bushing Connector Contact Ferrule Nut Sleeve
