901-10 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RP-SMA RIGHT ANGLE CRIMP PLUG 1.
| Part | Number of Ports | Connector Type | Center Contact Material | Housing Color | Cable Group Size | Cable Group | Frequency - Max | Shield Termination | Mounting Type | Fastening Type | Contact Termination | Connector Style | Impedance | Body Finish | Dielectric Material | Mating Cycles | Body Material | Voltage Rating | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Plating | Mounting Feature | Convert To (Adapter End) Gender | Convert To (Adapter End) Type | Convert From (Adapter End) | Adapter Series | Adapter Type | Center Gender | Style | Conversion Type | Ingress Protection Description | Ingress Protection IP Rating | Includes Total Count | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 1 | Female Socket Plug | Beryllium Copper | Gold | 1.13 mm | Coaxial Cable | 7.1 GHz | Crimp | 45° Angle Free Hanging (In-Line) | Threaded | Solder | RP-SMA | 50 Ohm | Gold | Polytetrafluoroethylene (PTFE) | 500 cycles | Brass | 335 V | -65 °C | 165 °C | Gold | |||||||||||||
 McGill Microwave Systems | 1 | Female Socket Jack | Beryllium Copper | Gold | 0.81 mm | OD Coaxial Cable | 6000 MHz | Crimp | Panel Mount | Threaded | Solder | SMA | 50 Ohm | Gold | Polytetrafluoroethylene (PTFE) | 500 cycles | Brass | 335 V | -65 °C | 165 °C | Gold | Bulkhead Front Side Nut | ||||||||||||

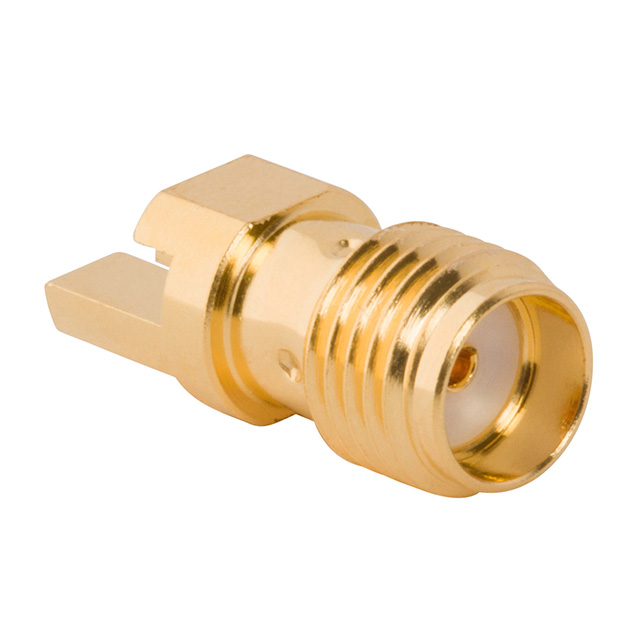

 McGill Microwave Systems | 1 | Female Socket Jack | 26.5 GHz | Solder | Board Edge End Launch | Threaded | Solder | SMA | 50 Ohm | 500 cycles | 170 V | -65 °C | 165 °C | Flange | ||||||||||||||||||||
 McGill Microwave Systems | Beryllium Copper | 4 GHz | Panel Mount | Bayonet Lock Threaded | 50 Ohm | Nickel | Polytetrafluoroethylene (PTFE) | Brass | -65 °C | 165 °C | Gold | Bulkhead | Female Socket | SMA Jack | BNC Jack Female Socket | BNC to SMA | Jack to Jack | Female | Straight | Between Series | Dust Tight Waterproof | IP67 | 3 pcs | Connector Lockwasher Nut | ||||||||||

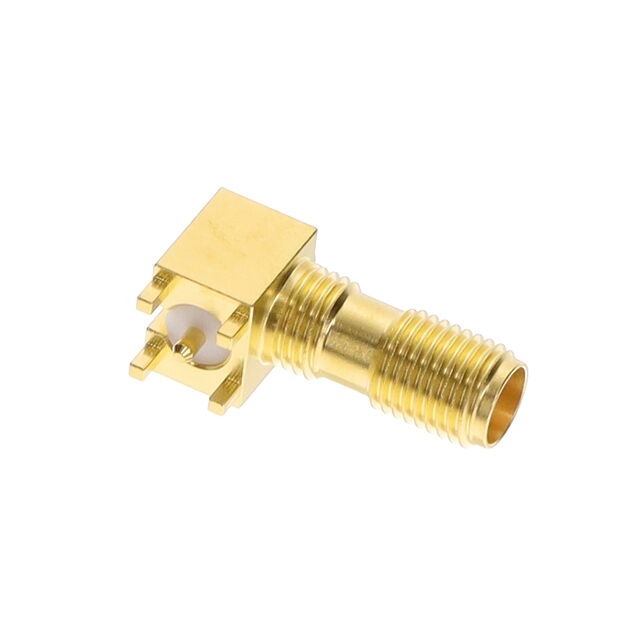

 McGill Microwave Systems | 1 | Female Socket Jack | Beryllium Copper | Gold | 2 GHz | Solder | Right Angle Through Hole | Threaded | Solder | SMA | 50 Ohm | Gold | Polytetrafluoroethylene (PTFE) | 500 cycles | Stainless Steel | 335 V | -65 °C | 165 °C | Gold | |||||||||||||||
 McGill Microwave Systems | Brass | 4 GHz | Free Hanging (In-Line) | Snap-On Threaded | 50 Ohm | Gold Passivated | Polytetrafluoroethylene (PTFE) | Beryllium Copper Stainless Steel | -40 °C | 155 °C | Gold | Male Pin | 1.0/2.3 Plug | Male Pin SMA Plug | SMA to 1.0/2.3 | Plug to Plug | Male | Straight | Between Series | |||||||||||||||
 McGill Microwave Systems | 1 | Jack Male Pin | Beryllium Copper | Gold | RG-178 | 7.1 GHz | Crimp | Panel Mount | Threaded | Solder | RP-SMA | 50 Ohm | Gold | Polytetrafluoroethylene (PTFE) | 500 cycles | Brass | 335 V | -65 °C | 165 °C | Gold | Bulkhead Front Side Nut | Dust Tight Waterproof | IP67 | |||||||||||
 McGill Microwave Systems | 1 | Female Socket Jack | Beryllium Copper Brass | Gold | 1.32 mm | Coaxial Cable | 3 GHz | Crimp | Panel Mount | Threaded | Solder | SMA | 50 Ohm | Gold | Polytetrafluoroethylene (PTFE) | 500 cycles | Brass | -65 °C | 165 °C | Gold | Bulkhead Front Side Nut | 6 pcs | Connector Contact Insulators Nut Sleeve | |||||||||||
 McGill Microwave Systems | Brass | 6000 MHz | Panel Mount | Snap-On Threaded | 50 Ohm | Gold | Polytetrafluoroethylene (PTFE) | 100 cycles | Brass | -65 °C | 165 °C | Gold | Bulkhead | Male Pin | U.FL (UMCC) Jack | Male Pin RP-SMA Jack | AMC RP-SMA to U.FL (UMCC) | Jack to Jack | Male | Straight | Between Series | 3 pcs | Connector Lockwasher Nut | |||||||||||
McGill Microwave Systems | 1 | Female Socket Jack | Beryllium Copper | Gold | 1.13 mm | Coaxial Cable | 3 GHz | Crimp | Panel Mount | Threaded | Solder | SMA | 50 Ohm | Gold | Polytetrafluoroethylene (PTFE) | 500 cycles | Brass | -65 °C | 165 °C | Gold | Bulkhead Front Side Nut | 6 pcs | Bushing Connector Contact Ferrule Nut Sleeve |
