Q-0E06900080.5M

Active

Amphenol Custom Cable

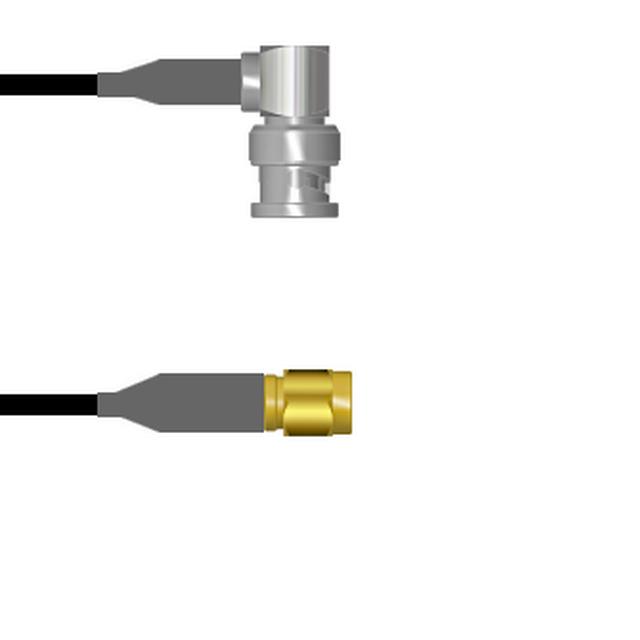

CBL ASSY RPSMA-BNC PLG-PL 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0E06900080.5M

Active

Amphenol Custom Cable

CBL ASSY RPSMA-BNC PLG-PL 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0E06900080.5M

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	BNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	RP-SMA to BNC

Q-0E0690 Series

Part	Frequency - Max [Max]	Overall Impedance	Color	Style	Features	2nd Connector	Length	Length	1st Connector	2nd Contact Gender	1st Connector Mounting Type	Cable Type	2nd Connector Mounting Type	1st Contact Gender	Length [x]	Length [x]	Length	Length [x]
Amphenol Custom Cable Q-0E06900080.5M	4 GHz	50 Ohms	Black	RP-SMA to BNC	Shielded	BNC Plug Right Angle	50 cm	19.69 "	RP-SMA Plug	Male	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-0E0690008012i	4 GHz	50 Ohms	Black	RP-SMA to BNC	Shielded	BNC Plug Right Angle	304.8 mm	12 "	RP-SMA Plug	Male	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-0E0690008018i	4 GHz	50 Ohms	Black	RP-SMA to BNC	Shielded	BNC Plug Right Angle			RP-SMA Plug	Male	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0E06900082.5M	4 GHz	50 Ohms	Black	RP-SMA to BNC	Shielded	BNC Plug Right Angle	2.5 m	98.4 in	RP-SMA Plug	Male	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	Female			8.2 '
Amphenol Custom Cable Q-0E0690008.75M	4 GHz	50 Ohms	Black	RP-SMA to BNC	Shielded	BNC Plug Right Angle	750 mm	29.53 "	RP-SMA Plug	Male	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-0E0690008060i	4 GHz	50 Ohms	Black	RP-SMA to BNC	Shielded	BNC Plug Right Angle	1.5 m	5 '	RP-SMA Plug	Male	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	Female			5 ft
Amphenol Custom Cable Q-0E0690008002M	4 GHz	50 Ohms	Black	RP-SMA to BNC	Shielded	BNC Plug Right Angle	2 m	78.7 in	RP-SMA Plug	Male	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	Female			6.6 ft
Amphenol Custom Cable Q-0E0690008024i	4 GHz	50 Ohms	Black	RP-SMA to BNC	Shielded	BNC Plug Right Angle	609.6 mm	24 "	RP-SMA Plug	Male	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-0E0690008.25M	4 GHz	50 Ohms	Black	RP-SMA to BNC	Shielded	BNC Plug Right Angle			RP-SMA Plug	Male	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	Female		250 mm		9.843 "
Amphenol Custom Cable Q-0E0690008084i	4 GHz	50 Ohms	Black	RP-SMA to BNC	Shielded	BNC Plug Right Angle	2.1 m	84 in	RP-SMA Plug	Male	Free Hanging (In-Line)	RG-58	Free Hanging (In-Line)	Female			7 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 88.09
		25	$ 87.03
		50	$ 85.98
		100	$ 84.92
		250	$ 83.86

Description

General part information

Q-0E0690 Series

Cable Assembly Coaxial RP-SMA to BNC RG-58 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
