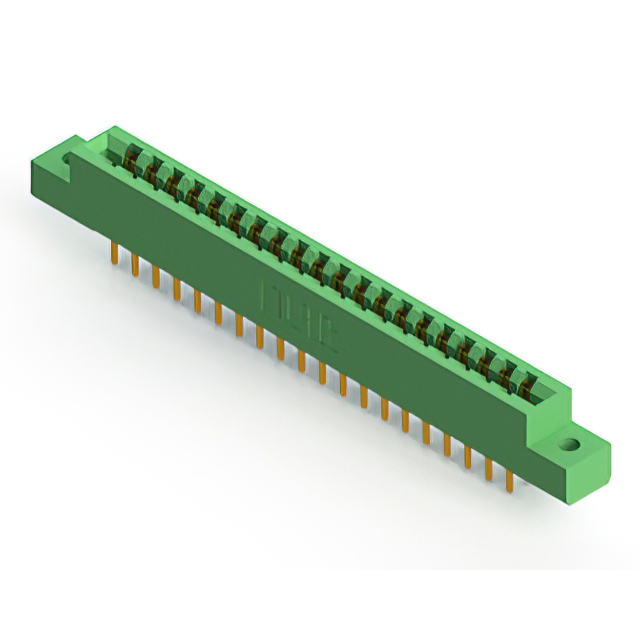

305-040-520-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 40POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
305-040-520-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 40POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-040-520-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 40 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
305-040 Series
| Part | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Termination Rows | Card Type | Color | Contact Material | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Gender | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Contact Type | Number of Rows | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 40 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | Non Specified - Dual Edge | Green | Copper Alloy | Solder Eyelet(s) | -40 °C | 105 ░C | Polyester Thermoplastic | 20 | 20 | 20 | Female | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Semi Bellows | 2 | ||
EDAC Inc. | 40 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | Non Specified - Dual Edge | Green | Copper Alloy | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 20 | 20 | 20 | Female | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Semi Bellows | 2 | Card Extender | Board Edge Straddle Mount |
EDAC Inc. | 40 | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | Non Specified - Dual Edge | Green | Copper Alloy | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 20 | 20 | 20 | Female | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Semi Bellows | 2 | Card Extender | Board Edge Straddle Mount | ||
EDAC Inc. | 40 | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | Non Specified - Dual Edge | Green | Copper Alloy | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 20 | 20 | 20 | Female | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Semi Bellows | 2 | Panel Mount Through Hole | |
EDAC Inc. | 40 | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | Non Specified - Dual Edge | Green | Copper Alloy | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 20 | 20 | 20 | Female | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Semi Bellows | 2 | Board Edge Straddle Mount | |||
EDAC Inc. | 40 | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | Non Specified - Dual Edge | Green | Copper Alloy | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 20 | 20 | 20 | Female | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Semi Bellows | 2 | Panel Mount Through Hole | |||
EDAC Inc. | 40 | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | Non Specified - Dual Edge | Green | Copper Alloy | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 20 | 20 | 20 | Female | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Semi Bellows | 2 | Panel Mount Through Hole | |
EDAC Inc. | 40 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | Non Specified - Dual Edge | Green | Copper Alloy | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 20 | 20 | 20 | Female | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Semi Bellows | 2 | Panel Mount Through Hole | |
EDAC Inc. | 40 | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | Non Specified - Dual Edge | Green | Copper Alloy | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 20 | 20 | 20 | Female | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Semi Bellows | 2 | Card Extender | Board Edge Straddle Mount | ||
EDAC Inc. | 40 | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | Non Specified - Dual Edge | Green | Copper Alloy | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 20 | 20 | 20 | Female | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Semi Bellows | 2 | Board Edge Straddle Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 9.44 | |
Description
General part information
305-040 Series
40 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
