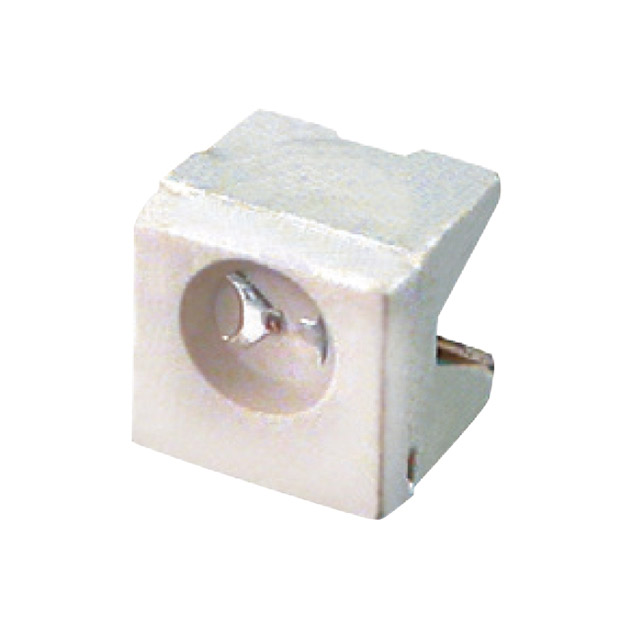

XZM2DG67S
ActiveSunLED
LED GREEN CLEAR 2SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZM2DG67S
ActiveSunLED
LED GREEN CLEAR 2SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZM2DG67S |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 4 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 1195 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, Boomerang |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [y] | 3.6 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 525 nm |
| Wavelength - Peak | 520 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.37 | |
| 2500 | $ 0.35 | |||
| 5000 | $ 0.34 | |||
| 12500 | $ 0.34 | |||
| 25000 | $ 0.33 | |||
Description
General part information
XZM2DG67 Series
Green 525nm LED Indication - Discrete 3.2V 2-SMD, Boomerang
