641283-3
ObsoleteTE Connectivity AMP Connectors

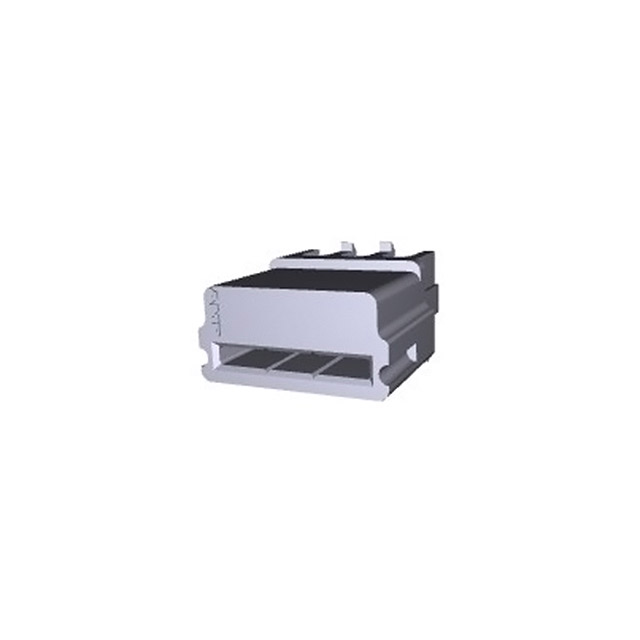

CONN EDGE SGL FEMALE 3POS 0.156
641283-3
ObsoleteTE Connectivity AMP Connectors
CONN EDGE SGL FEMALE 3POS 0.156
Description
General part information
641283 Series
3 Position Female Connector Non Specified - Single Edge Tin-Lead 0.156" (3.96mm) Orange
Technical Specifications
Parameters and characteristics for this part
| Specification | 641283-3 |
|---|---|
| Card Thickness | 0.062 in |
| Card Type | Non Specified, Single Edge |
| Color | Orange |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 80 µin |
| Contact Material | Phosphor Bronze |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.156 in |
| Read Out | Single |
| Termination | IDC |
