NP0G3D200A

Obsolete

Panasonic Industrial Automation Sales

TRANS PREBIAS NPN/PNP SSSMINI6

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS PREBIAS NPN/PNP SSSMINI6

Technical Specifications

Parameters and characteristics for this part

Specification	NP0G3D200A

Current - Collector (Ic) (Max) [Max]	80 mA
Current - Collector Cutoff (Max) [Max]	500 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	80, 20
Frequency - Transition	80 MHz, 150 MHz
Mounting Type	Surface Mount
Package / Case	SOT-963
Power - Max [Max]	125 mW
Resistor - Base (R1)	4.7 kOhms, 22 kOhms
Resistor - Emitter Base (R2)	47000 Ohms, 4700 Ohms

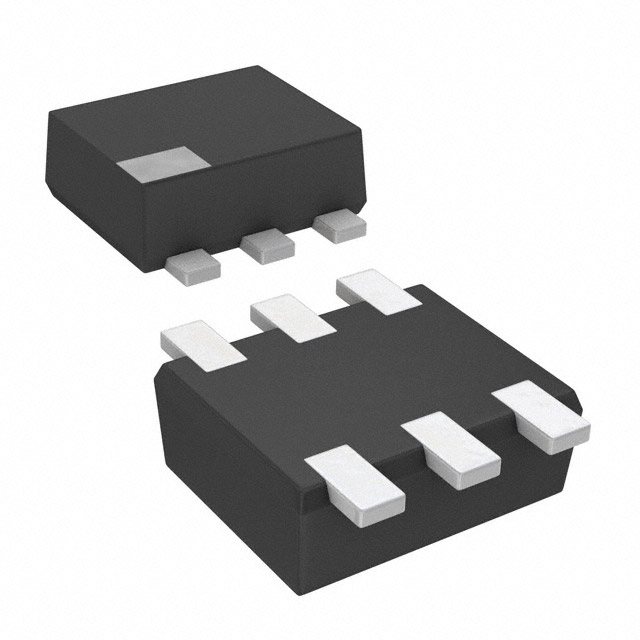

Supplier Device Package	SSSMini6-F1
Transistor Type	1 NPN, 1 PNP
Vce Saturation (Max) @ Ib, Ic	250 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	DC Current Gain (hFE) (Min) @ Ic, Vce	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Frequency - Transition	Mounting Type	Resistor - Emitter Base (R2)	Current - Collector (Ic) (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Power - Max [Max]	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Transistor Type	Resistor - Base (R1)
Panasonic Industrial Automation Sales NP0G3D200A	20 80	SOT-963	50 V	80 MHz 150 MHz	Surface Mount	4700 Ohms 47000 Ohms	80 mA	250 mV	125 mW	SSSMini6-F1	500 nA	1 NPN 1 PNP	4.7 kOhms 22 kOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 80mA 150MHz, 80MHz 125mW Surface Mount SSSMini6-F1
