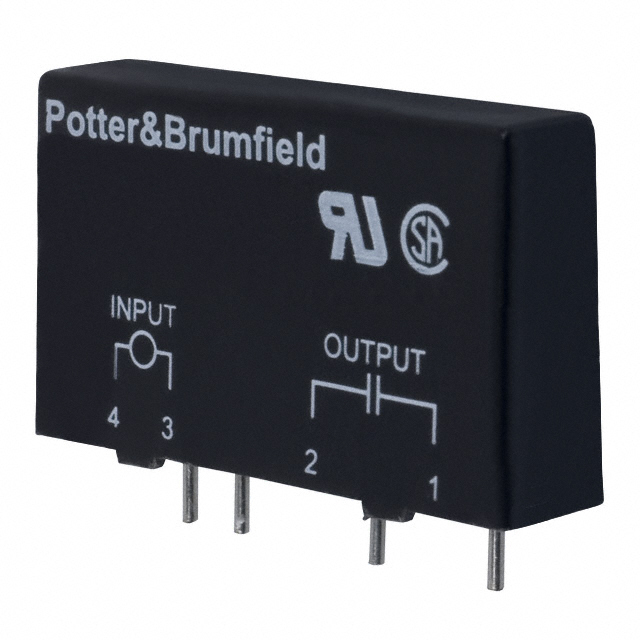

OACM-5H
ActiveTE Connectivity Potter & Brumfield Relays
AC OUTPUT MODULE 5A
Deep-Dive with AI
Search across all available documentation for this part.
OACM-5H
ActiveTE Connectivity Potter & Brumfield Relays
AC OUTPUT MODULE 5A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OACM-5H |
|---|---|
| Color | Black |
| Current - Input | 20 mA |
| Current - Output | 5 A |
| Style | Mini |
| Turn Off Time | 8.33 ms |
| Turn On Time | 8.33 ms |
| Type | AC Output Module |
| Voltage - Input | 5 VDC |
| Voltage - Output [Max] | 280 VAC |
| Voltage - Output [Min] | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 26.98 | |
| 10 | $ 24.03 | |||
| 25 | $ 22.95 | |||
| 50 | $ 22.16 | |||
| 100 | $ 21.40 | |||
| 300 | $ 20.82 | |||
Description
General part information
OACM Series
AC Output Module Output Module 5A 24 ~ 280VAC Output 5VDC Supply
Documents
Technical documentation and resources
No documents available
