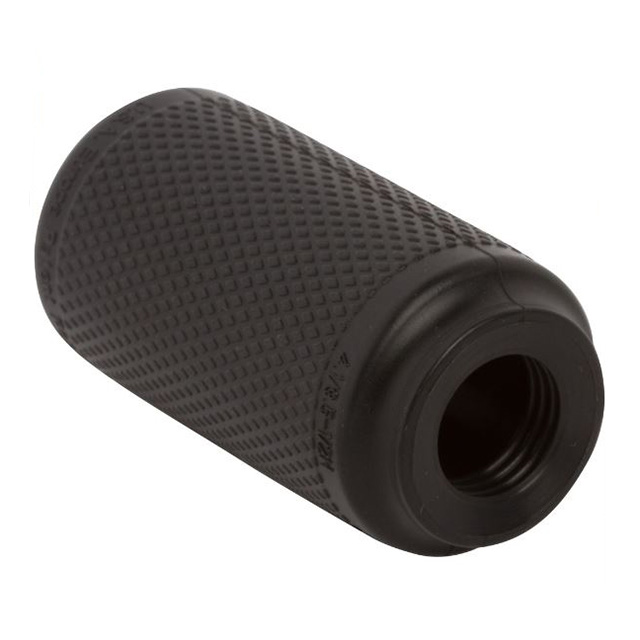

431-10002

Active

Amphenol RF

4.3-10 BOOT

Deep-Dive with AI

Search across all available documentation for this part.

431-10002

Active

Amphenol RF

4.3-10 BOOT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	431-10002

Accessory Type	Boot
Body Material	Silicone Rubber
Color	Black
Connector Style [Max]	9.5
Connector Style [Min]	4.1
Features	IP67
For Use With/Related Products	4.1/9.5 Jacks

431 Series

Part	Features	Number of Ports	Mating Cycles	Housing Color	Ingress Protection	Dielectric Material	Body Material	Contact Termination	Frequency - Max [Max]	Cable Group	Cable Group	Center Contact Material	Voltage Rating	Connector Type	Includes	Mounting Feature	Shield Termination	Connector Style	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Center Contact Plating	Accessory Type	For Use With/Related Products	Color	Connector Style [Min]	Connector Style [Max]	Mounting Type	Insertion Loss
Amphenol RF 431-115J-52S	Low PIM	1	500	Silver	IP67 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	Brass	Solder	6000 MHz	0.25 in	RG-401	Beryllium Copper	500 V	Female Socket Jack	1 Connector 1 Contact 1 Spacer	Flange	Solder	4.3/10	White Bronze	-65 ░C	165 °C	50 Ohms	Silver
Amphenol RF 431-130J-52S	EMI/RFI Gasket Low PIM	1	500	Silver	IP68 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	Brass	Threaded	6000 MHz			Beryllium Copper	500 V	Female Socket Receptacle		Flange	Solder	4.3/10	White Bronze	-65 ░C	165 °C	50 Ohms	Silver
Amphenol RF 431-128J-52S	EMI/RFI Gasket Low PIM	1	500	Silver	IP67 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	Brass	Solder	6000 MHz			Beryllium Copper	500 V	Female Socket Jack		Flange	Solder	4.3/10	White Bronze	-65 ░C	165 °C	50 Ohms	Silver
Amphenol RF 431-10001	Chain IP67						Brass											4.3/10	Nickel					Cap (Cover)	4.3/10 Jacks	Silver
Amphenol RF 431-10002	IP67						Silicone Rubber																	Boot	4.1/9.5 Jacks	Black	4.1	9.5
Amphenol RF 431-124P-52S	Low PIM	1	500	Silver	IP67 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	Brass	Solder	3 GHz	0.25 in	RG-401	Brass		Male Pin Plug			Solder	4.3/10	White Bronze	-40 °C	185 °C	50 Ohms	Silver						Free Hanging (In-Line)	0.1 dB
Amphenol RF 431-129J-52S	EMI/RFI Gasket Low PIM	1	500	Silver	IP68 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	Brass	Solder Cup	6000 MHz			Beryllium Copper	500 V	Female Socket Jack		Flange	Solder	4.3/10	White Bronze	-65 ░C	165 °C	50 Ohms	Silver
Amphenol RF 431-118J-52S	EMI/RFI Gasket Low PIM	1	500	Silver	IP67 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	Brass	Solder	6000 MHz			Beryllium Copper	500 V	Female Socket Receptacle		Flange	Solder	4.3/10	White Bronze	-65 ░C	165 °C	50 Ohms	Silver
Amphenol RF 431-127J-52S	EMI/RFI Gasket Low PIM	1	500	Silver	IP67 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	Brass	Threaded	6000 MHz			Beryllium Copper	500 V	Female Socket Jack		Flange	Solder	4.3/10	White Bronze	-65 ░C	165 °C	50 Ohms	Silver
Amphenol RF 431-126P-52S	Low PIM	1		Silver	IP67 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	Brass		3 GHz	0.5 in	Helical	Copper		Male Pin Plug			Clamp	4.3/10	White Bronze	-40 °C	85 °C	50 Ohms	Silver						Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 29.97

Description

General part information

431 Series

Connector Boot For 4.1/9.5 Jacks

Documents

Technical documentation and resources

No documents available
