PF0033/20/63

Active

BULGIN LIMITED

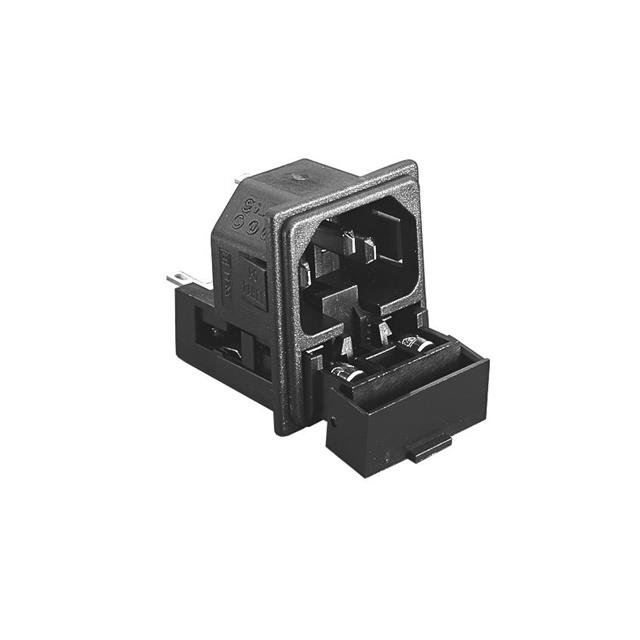

UN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 2-POLE FUSE HOLDER

Search across all available documentation for this part.

Active

BULGIN LIMITED

UN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 2-POLE FUSE HOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PF0033/20/63

Accomodates a Fuse	True
Approval Agency	CSA, UL
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Twin Fused
Fuse Holder, Drawer	True
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.3 mm
Panel Cutout Dimensions [y]	31.12 mm
Panel Thickness	2 mm
Panel Thickness	0.079 in
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Fuse Holder, Drawer	Termination	Termination	Approval Agency	Mounting Type	Connector Style	Current Rating - Appliance Inlet	Panel Thickness	Panel Thickness	Material Flammability Rating	Connector Type	Voltage Rating - Appliance Inlet	Filter Type	Termination	Panel Thickness [custom]	Panel Thickness [custom]
BULGIN LIMITED PF0033/10/48	31.12 mm	27.3 mm	Twin Fused	0.189 " 4.8 mm	Quick Connect	CSA UL	Panel Mount Snap-In	IEC 320-C14	10 A	1 mm	0.039 in	UL94 V-0	Receptacle Male Blades - Module	250 VAC	Unfiltered - Commercial
BULGIN LIMITED PF0033/20/28	31.12 mm	27.3 mm	Twin Fused		Solder	CSA UL	Panel Mount Snap-In	IEC 320-C14	10 A	2 mm	0.079 in	UL94 V-0	Receptacle Male Blades - Module	250 VAC	Unfiltered - Commercial
BULGIN LIMITED PF0033/20/63	31.12 mm	27.3 mm	Twin Fused	6.3 mm	Quick Connect	CSA UL	Panel Mount Snap-In	IEC 320-C14	10 A	2 mm	0.079 in	UL94 V-0	Receptacle Male Blades - Module	250 VAC	Unfiltered - Commercial	0.25 in
BULGIN LIMITED PF0033/15/63	31.12 mm	27.3 mm	Twin Fused	6.3 mm	Quick Connect	CSA UL	Panel Mount Snap-In	IEC 320-C14	10 A			UL94 V-0	Receptacle Male Blades - Module	250 VAC	Unfiltered - Commercial	0.25 in	0.059 in	1.5 mm
BULGIN LIMITED PF0033/10/63	31.12 mm	27.3 mm	Twin Fused	6.3 mm	Quick Connect	CSA UL	Panel Mount Snap-In	IEC 320-C14	10 A	1 mm	0.039 in	UL94 V-0	Receptacle Male Blades - Module	250 VAC	Unfiltered - Commercial	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
