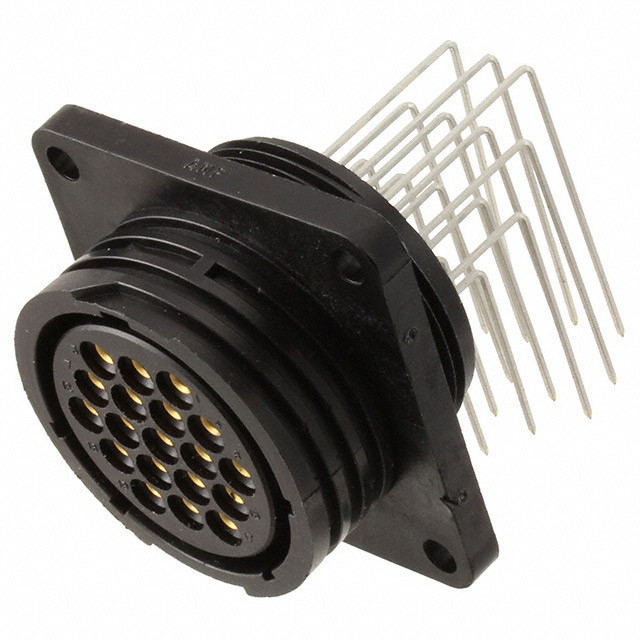

796502-1

Obsolete

TE Connectivity AMP Connectors

CONN RCPT FMALE 19POS GOLD SLDR

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN RCPT FMALE 19POS GOLD SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	796502-1

Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Brass
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	19
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Plastic
Shell Size - Insert	23-19
Termination	Solder
Voltage Rating	250 VAC

CONN RCPT FMALE 19POS GOLD SLDR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Contact Finish - Mating	Connector Type	Mounting Feature	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Termination	Voltage Rating	Material Flammability Rating	Orientation	Primary Material	Number of Positions
TE Connectivity AMP Connectors 796502-1	105 ░C	-55 °C	23-19	Gold	Receptacle, Female Sockets	Flange	Panel Mount, Right Angle, Through Hole	30 Áin	0.76 Ám	Brass	Solder	250 VAC	UL94 V-0	A	Plastic	19

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

19 Position Circular Connector Receptacle, Female Sockets Solder
