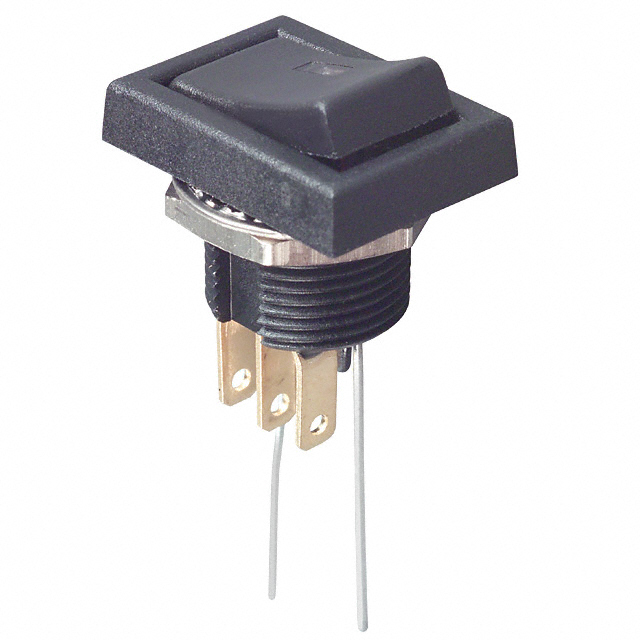

TRD11F10QCLR2

Active

TE Connectivity Raychem Cable Protection

SWITCH ROCKER SPDT 0.4VA 20V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH ROCKER SPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	TRD11F10QCLR2

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	80000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2.8 VDC
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	11.9 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Mounting Type	Switch Function	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Electrical Life	Voltage Rating - DC	Illumination Type, Color	Color - Actuator/Cap	Mechanical Life	Panel Cutout Dimensions [diameter]	Actuator Type	Current Rating (Amps)	Illumination Voltage (Nominal)	Voltage Rating - AC	Circuit
TE Connectivity Raychem Cable Protection TRD11F10QCLR2	Panel Mount Threaded Body with Nut	On-Mom	Quick Connect - 0.110" (2.8mm)	-20 C	80 C	No Marking	80000 Cycles	20 V	LED Red	Black	100000 Cycles	11.9 mm	Concave (Curved) - Illuminated	0.4 VA	2.8 VDC	20 V	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 40.34

General part information

Rocker Switch SPDT 0.4VA (AC/DC) 20 V Panel Mount, Threaded Body with Nut
