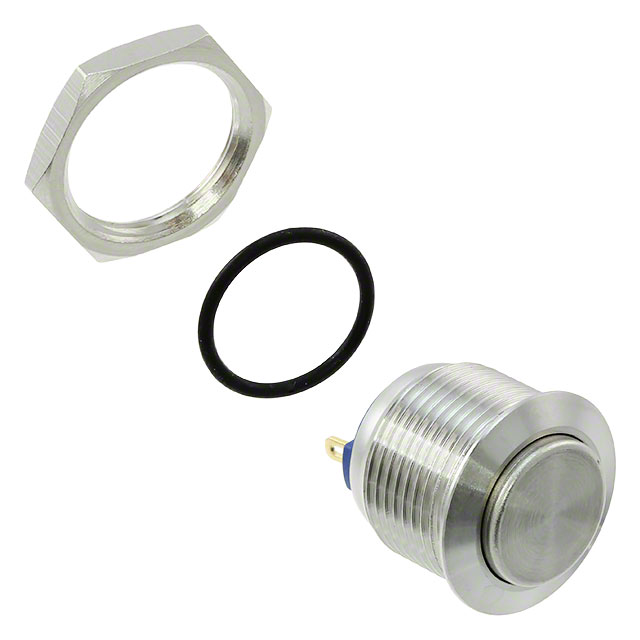

PV2H240SS

Active

E-Switch

SWITCH PUSHBUTTON SPST 2A 48V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON SPST 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	PV2H240SS

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal
Voltage Rating - DC	48 V

Part	Actuator Type	Circuit	Mechanical Life	Type	Electrical Life	Termination Style	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Ingress Protection	Actuator Marking	Mounting Type	Voltage Rating - DC
E-Switch PV2H240BB	Button Round	SPST-NO	1000000 Cycles	Anti-Vandal	200000 Cycles	Solder Lug	16 mm	Silver	2 A	55 °C	-20 C	Off-Mom	IP65 - Dust Tight Water Resistant	No Marking	Panel Mount Front	48 V
E-Switch PV2H240SS	Button Round	SPST-NO	1000000 Cycles	Anti-Vandal	200000 Cycles	Solder Lug	16 mm	Silver	2 A	55 °C	-20 C	Off-Mom	IP65 - Dust Tight Water Resistant	No Marking	Panel Mount Front	48 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
