Part	Contact Rating (Current)	Coil Type	Relay Type	Load - Max Switching (Real Power)	Contact Form	Coil Current	Contact Material	Operate Time	Termination Style	Must Release Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Coil Voltage	Must Operate Voltage	Mounting Type	Release Time	Features	Coil Resistance
TE Connectivity AMP Connectors 29-113-12	120 A	Non Latching	General Purpose	10 W	1 DM Form SPST-NO X	350 mA	Silver Tin Oxide (AgSnO)	35 ms	Screw Terminal	4 VDC	-40 °C	85 °C	28 VDC	18 VDC	Chassis Mount	15 ms	Diode	80 Ohms
TE Connectivity AMP Connectors 29-211-12	220 A	Non Latching	General Purpose	10 W	1 DM Form SPST-NO X	451.6 mA	Silver Tin Oxide (AgSnO)	40 ms	Screw Terminal	4 VDC	-40 °C	85 °C	28 VDC	18 VDC	Chassis Mount	20 ms	Diode	62 Ohms
TE Connectivity AMP Connectors 29-212-12	200 A	Non Latching	General Purpose		1 DM Form SPST-NO X	400 mA	Silver Tin Oxide (AgSnO)	40 ms	Screw Terminal	4 VDC	-40 °C	85 °C	24 VDC	18 VDC	Chassis Mount	20 ms	Diode	62 Ohms
TE Connectivity AMP Connectors 29-513-11	500 A	Non Latching	General Purpose	22 W	1 DM Form SPST-NO X	1.33 A	Silver Tin Oxide (AgSnO)	60 ms	Screw Terminal	2 VDC	-40 °C	85 °C	12 VAC	9 VDC	Chassis Mount	30 ms	Diode
TE Connectivity AMP Connectors 29-221-12	200 A	Non Latching	General Purpose	10 W	1 C Form SPDT	451.6 mA	Silver Tin Oxide (AgSnO)	40 ms	Screw Terminal	4 VDC	-40 °C	85 °C	28 VDC	18 VDC	Chassis Mount	20 ms	Diode
TE Connectivity AMP Connectors 29-511-11A	500 A	Non Latching	General Purpose	22 W	1 DM Form SPST-NO X	1.33 A	Silver Tin Oxide (AgSnO)	60 ms	Screw Terminal	2 VDC	-40 °C	85 °C	12 VAC	9 VDC	Chassis Mount	30 ms	Diode

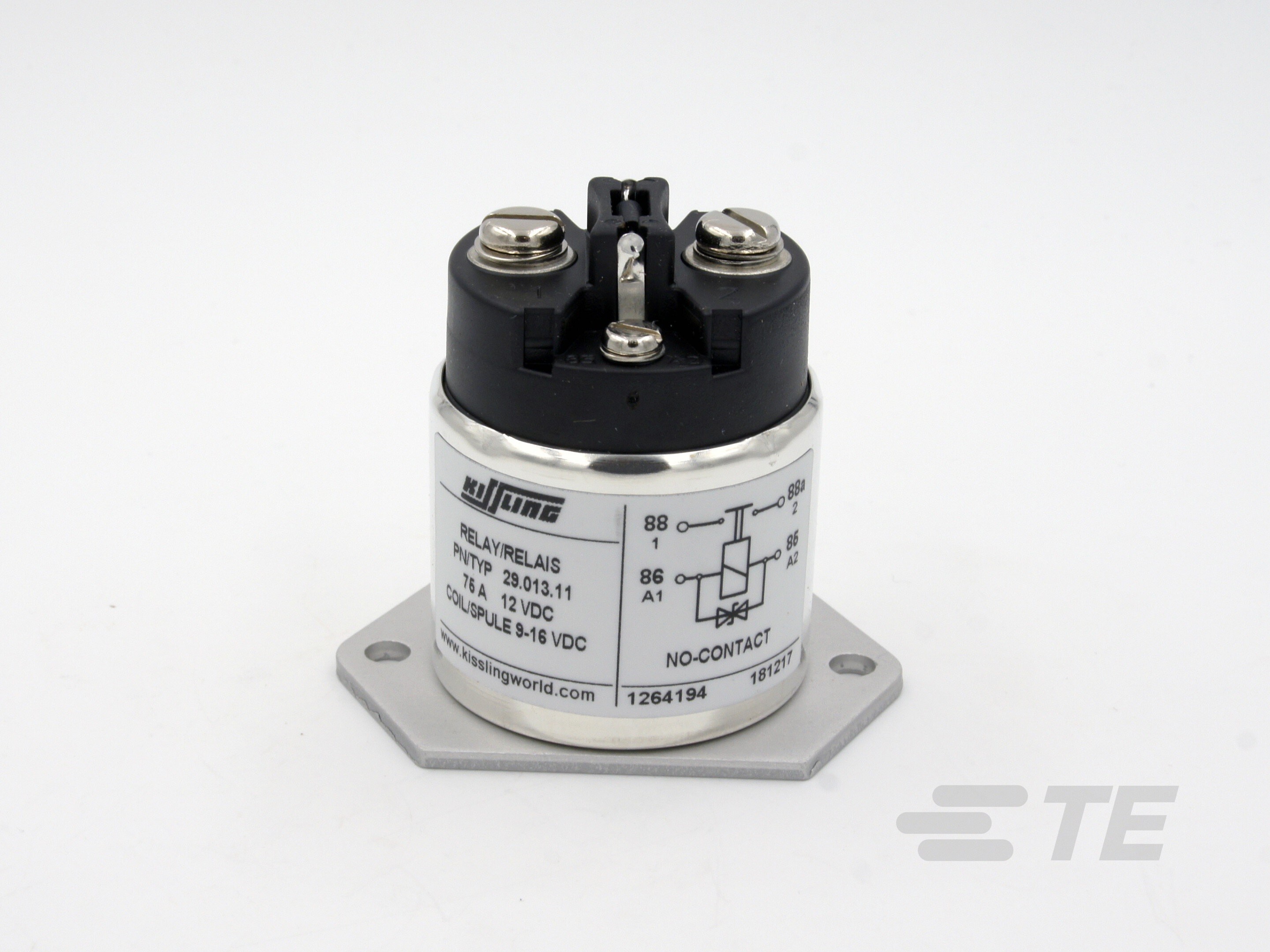

TE Connectivity AMP Connectors 29-013-11	75 A	Non Latching	General Purpose	8 W	1 DM Form SPST-NO X	631.6 mA	Silver Tin Oxide (AgSnO)	35 ms	Screw Terminal	2 VDC	-40 °C	85 °C	12 VAC	9 VDC	Chassis Mount	15 ms	Diode
TE Connectivity AMP Connectors 29-111-11	120 A	Non Latching	General Purpose	7 W	1 DM Form SPST-NO X	600 mA	Silver Tin Oxide (AgSnO)	35 ms	Screw Terminal	2 VDC	-40 °C	85 °C	12 VAC	9 VDC	Chassis Mount	15 ms	Diode	20 Ohms

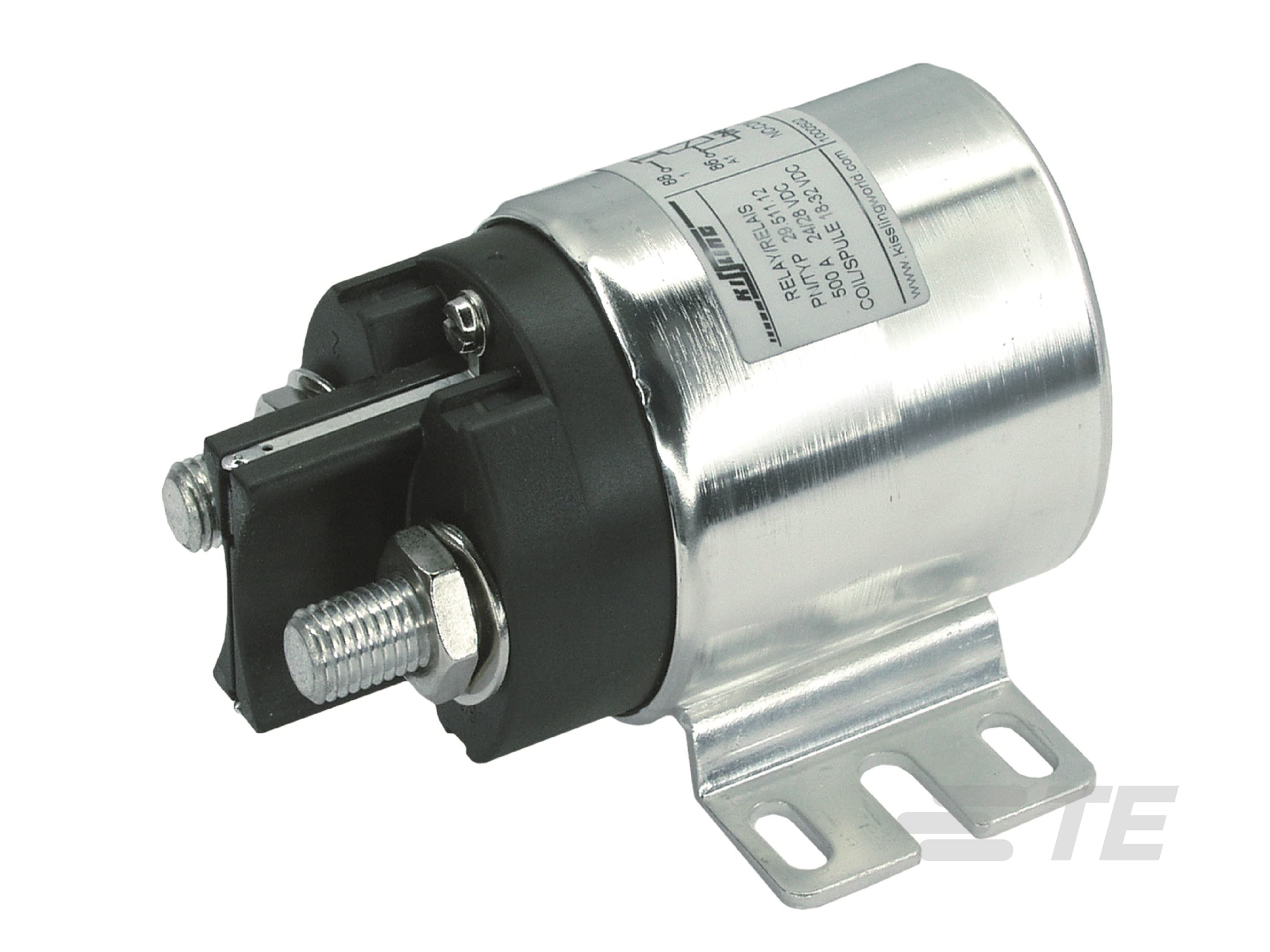

TE Connectivity AMP Connectors 29-511-11	500 A	Non Latching	General Purpose	22 W	1 DM Form SPST-NO X	1.33 A	Silver Tin Oxide (AgSnO)	60 ms	Screw Terminal	2 VDC	-40 °C	85 °C	12 VAC	9 VDC	Chassis Mount	30 ms	Diode
TE Connectivity AMP Connectors 29-212-11	200 A	Non Latching	General Purpose	10 W	1 DM Form SPST-NO X	800 mA	Silver Tin Oxide (AgSnO)	40 ms	Screw Terminal	2 VDC	-40 °C	85 °C	12 VAC	9 VDC	Chassis Mount	20 ms	Diode
