2232892 Series

Part	Mounting Type	Pitch	Wire Type	Number of Positions	Fastening Type	Color	Connector Type	Contact Type	Number of Rows	Cable Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Features	Contact Finish

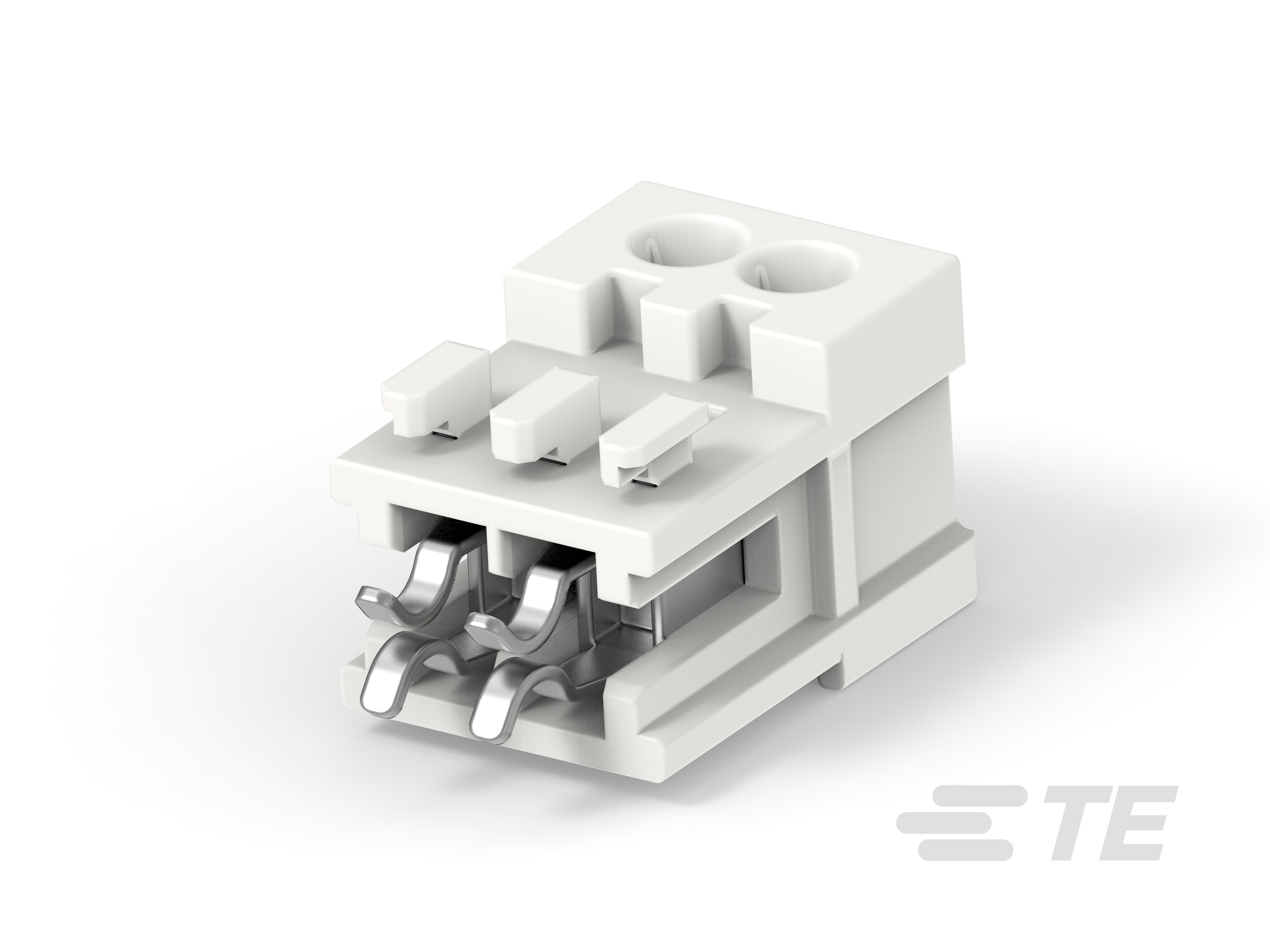

TE Connectivity AMP Connectors 1-2232892-2	Free Hanging (In-Line)	0.098 in	Discrete	2	Locking Ramp	Natural	Receptacle	Female Socket	1	IDC
TE Connectivity AMP Connectors 1-2232892-6	Free Hanging (In-Line) Right Angle	0.098 in	Discrete		Latch Lock		Receptacle	Female Blade Socket	1	Crimp	22 AWG	24 AWG	Mates to PCB	Tin
TE Connectivity AMP Connectors 1-2232892-5	Free Hanging (In-Line) Right Angle	0.098 in	Discrete		Latch Lock		Receptacle	Female Blade Socket	1	Crimp	22 AWG	24 AWG	Mates to PCB	Tin

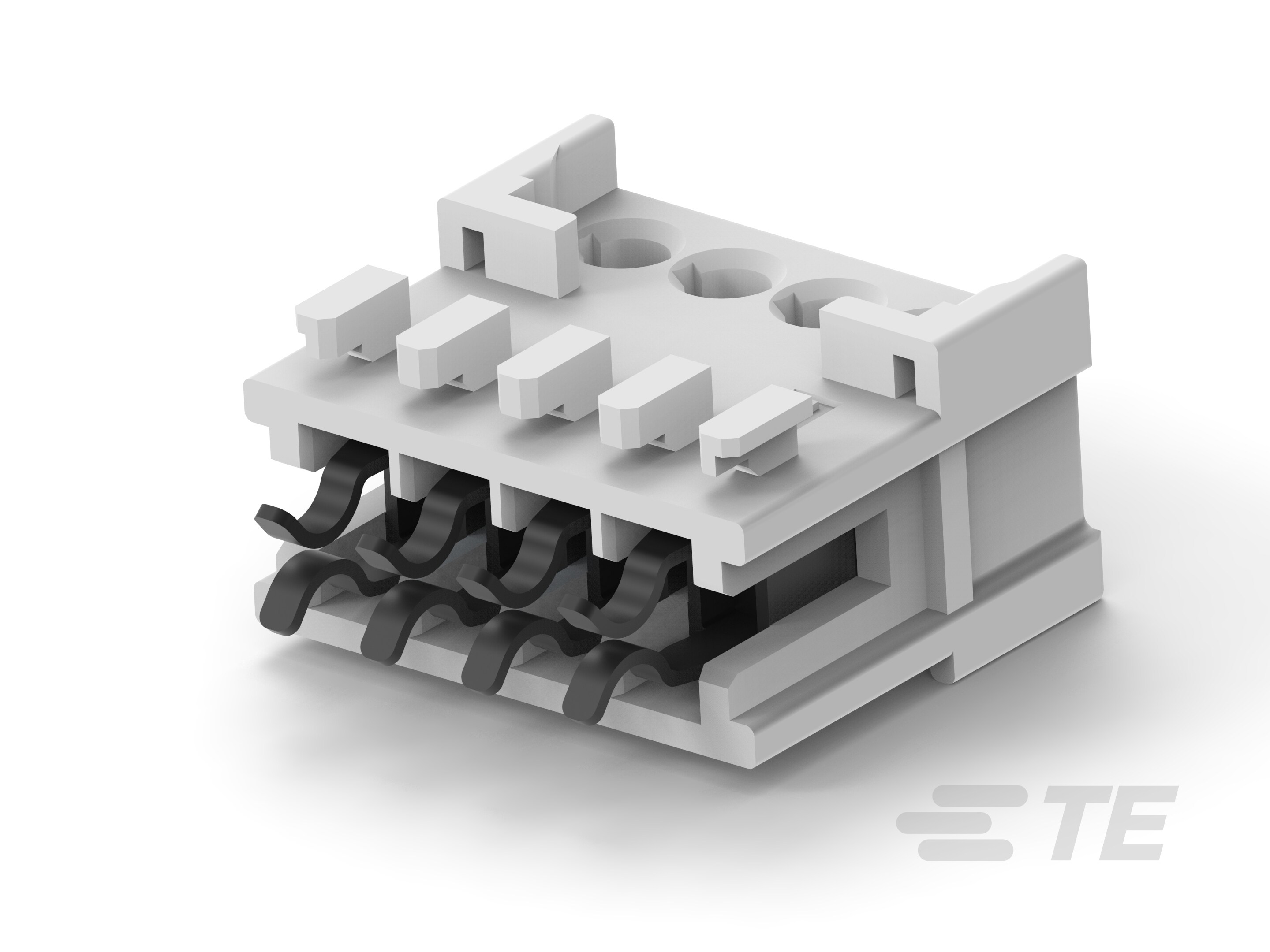

TE Connectivity AMP Connectors 1-2232892-4	Free Hanging (In-Line) Right Angle	0.098 in	Discrete		Latch Lock		Receptacle	Female Blade Socket	1	Crimp	22 AWG	24 AWG	Mates to PCB	Tin

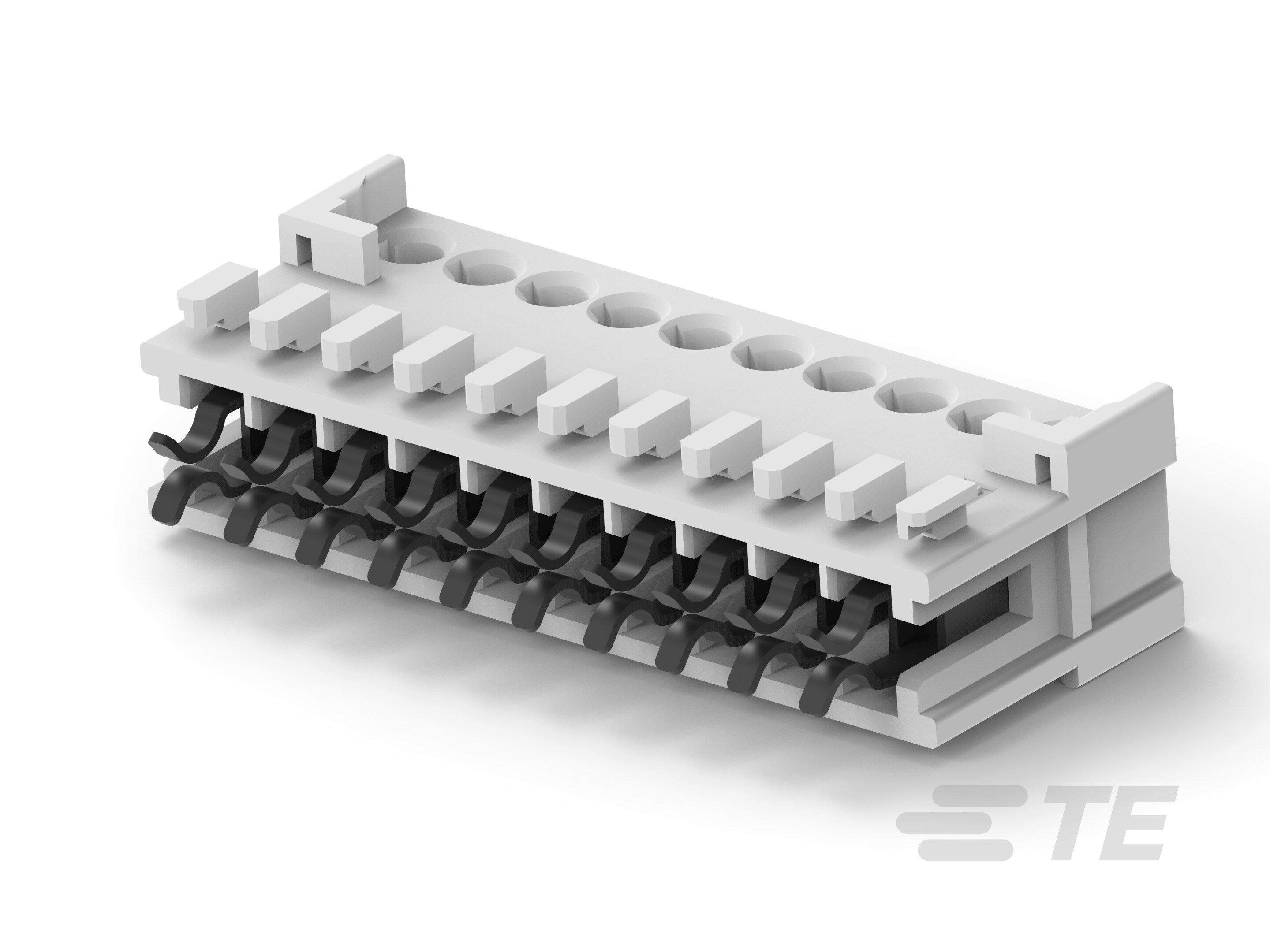

TE Connectivity AMP Connectors 1-2232892-0	Free Hanging (In-Line)	0.098 in	Discrete	10	Locking Ramp	Natural	Receptacle	Female Socket	1	IDC				Tin
TE Connectivity AMP Connectors 1-2232892-3	Free Hanging (In-Line)	0.098 in	Discrete	3	Locking Ramp	Natural	Receptacle	Female Socket	1	IDC

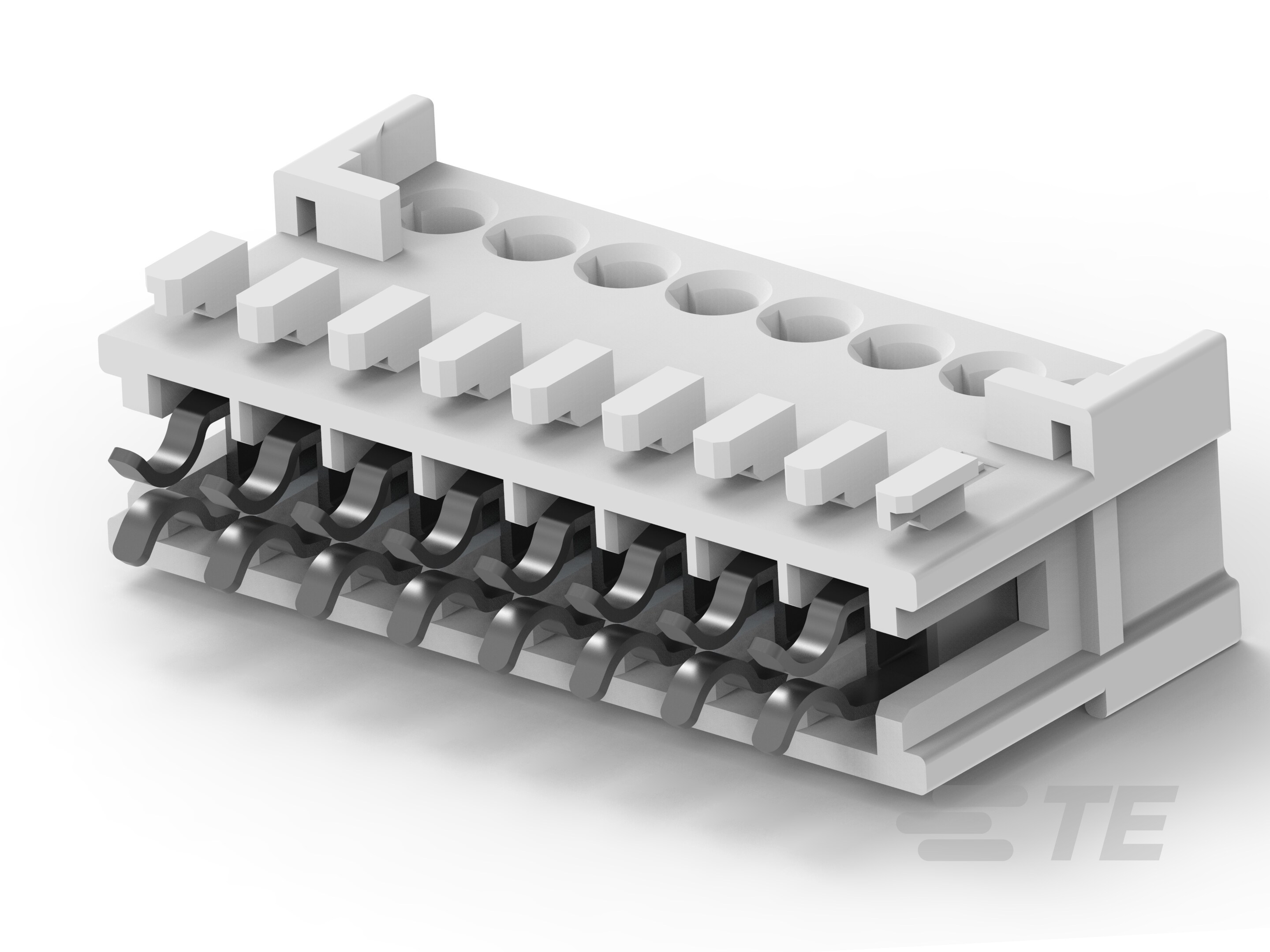

TE Connectivity AMP Connectors 1-2232892-8	Free Hanging (In-Line)	0.098 in	Discrete	8	Locking Ramp	Natural	Receptacle	Female Socket	1	IDC
