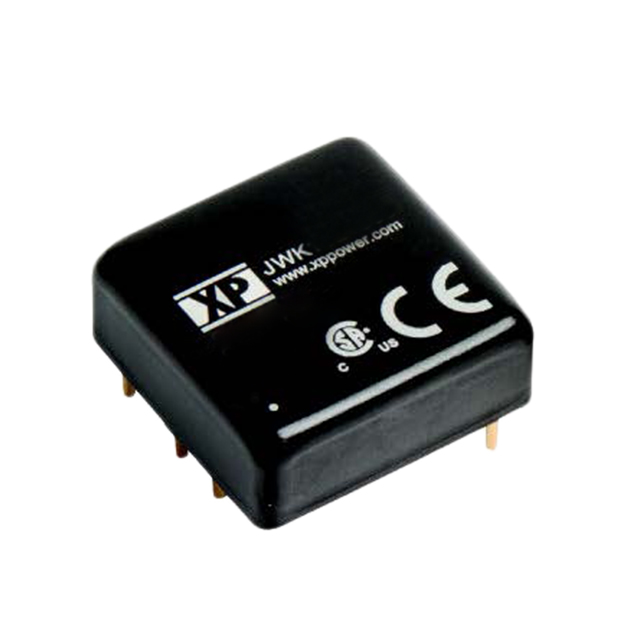

JWK1024S05
ActiveXP POWER
DIP,25.4X25.4MM ISOLATED POWER MODULES ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JWK1024S05
ActiveXP POWER
DIP,25.4X25.4MM ISOLATED POWER MODULES ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JWK1024S05 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 84 % |
| Features | UVLO, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5 Leads |
| Package / Case | 6-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
JWK1024 Series
Isolated Module DC DC Converter 1 Output 5V 2A 9V - 36V Input
