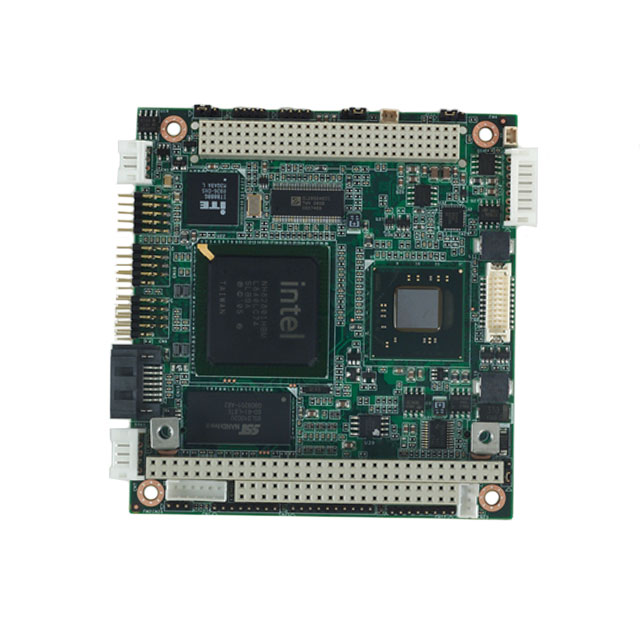

PCM-3362Z2-1GS6A1E
ObsoleteAdvantech Corp
SBC 1.66GHZ 1 CORE 2GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PCM-3362Z2-1GS6A1E
ObsoleteAdvantech Corp
SBC 1.66GHZ 1 CORE 2GB/0GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCM-3362Z2-1GS6A1E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Intel Atom N450 |
| Digital I/O Lines | 8 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | PC/104-Plus |
| Number of Cores | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 10.06 W |
| RAM Capacity/Installed | 0 GB, 2 GB |
| RS-232 (422, 485) | 3 |
| Size / Dimension [x] | 3.8 " |
| Size / Dimension [x] | 96.52 mm |
| Size / Dimension [y] | 88.9 mm |
| Size / Dimension [y] | 3.5 in |
| Speed | 1.66 GHz |
| Storage Interface | Flash 2GB, SATA2 |
| USB | USB 2.0 (4) |
| Video Outputs | VGA, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PCM-3362 Series
Single Board Computer 1.66GHz 1 Core 2GB/0GB RAM Intel Atom N450
Documents
Technical documentation and resources
