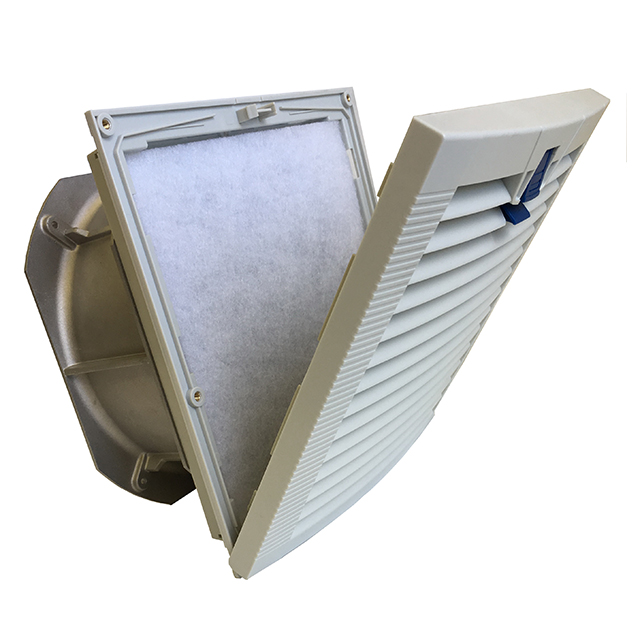

OA225LFGH221T

Active

Orion Fans

FAN AXIAL 322.7X133.4MM 230VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OA225LFGH221T

Active

Orion Fans

FAN AXIAL 322.7X133.4MM 230VAC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA225LFGH221T

Air Flow	16.8 mł/min
Air Flow	600 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Kit, Thermal Overload Protector (TOP), Capacitor
Lifetime @ Temp.	40000 Hrs
Material - Blade	Metal
Material - Frame	Aluminum
Noise	59 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	40 °C
Operating Temperature [Min]	104 °F
Power (Watts)	80 W
RPM	2800 RPM
Size / Dimension [x]	322.7 mm
Size / Dimension [z]	322.7 mm
Static Pressure	137 Pa
Static Pressure	0.55 in H2O
Termination	Terminal Block
Voltage - Rated	230 VAC
Width [y]	133.4 mm

OA225LF Series

Part	Bearing Type	Power (Watts)	RPM	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Features	Material - Frame	Fan Type	Static Pressure	Static Pressure	Noise	Material - Blade	Width [y]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Approval Agency	Lifetime @ Temp.	Air Flow	Air Flow	Termination	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [z]	Current Rating (Amps)
Orion Fans OA225LFGS221T	Ball	80 W	2800 RPM	317 mm	317 mm	230 VAC	Capacitor Kit Thermal Overload Protector (TOP)	Aluminum	Tubeaxial	137 Pa	0.55 in H2O	59 dB(A)	Metal	125.5 mm	40 °C	104 °F	70 °C	70 °C	cURus TUV	40000 Hrs	16.8 mł/min	600 CFM	Terminal Block
Orion Fans OA225LFGS111T	Ball	72 W	2800 RPM	317 mm	317 mm	115 VAC	Capacitor Kit Thermal Overload Protector (TOP)	Aluminum	Tubeaxial	137 Pa	0.55 in H2O	59 dB(A)	Metal	125.5 mm	40 °C	104 °F	70 °C	70 °C	cURus TUV	40000 Hrs	16.8 mł/min	600 CFM	Terminal Block	100 VAC	125 VAC
Orion Fans OA225LFGH221T	Ball	80 W	2800 RPM		322.7 mm	230 VAC	Capacitor Kit Thermal Overload Protector (TOP)	Aluminum	Tubeaxial	137 Pa	0.55 in H2O	59 dB(A)	Metal	133.4 mm	40 °C	104 °F	70 °C	70 °C	cURus TUV	40000 Hrs	16.8 mł/min	600 CFM	Terminal Block			322.7 mm
Orion Fans OA225LFG111T	Ball	72 W	2800 RPM	320 mm	320 mm	115 VAC	Capacitor Kit Thermal Overload Protector (TOP)	Aluminum	Tubeaxial	137 Pa	0.55 in H2O	59 dB(A)	Metal	141.5 mm	-40 °C	-40 °C	80 C	80 °C	cURus TUV	40000 Hrs	16.8 mł/min	600 CFM	Terminal Block	100 VAC	125 VAC		0.7 A
Orion Fans OA225LFG221T	Ball	80 W	2800 RPM	320 mm	320 mm	230 VAC	Capacitor Kit Thermal Overload Protector (TOP)	Aluminum	Tubeaxial	166.9 Pa	0.67 in H2O	61 dB(A)	Metal	141.5 mm	-40 °C	-40 °C	80 C	80 °C	cURus TUV	40000 Hrs	16.8 mł/min	600 CFM	Terminal Block				0.35 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 178.14

Description

General part information

OA225LF Series

Fan Tubeaxial 230VAC Square - 322.7mm L x 322.7mm H Ball 600.0 CFM (16.80m³/min) Terminal Block
