TB9120FTG(EL)

Obsolete

Toshiba Semiconductor and Storage

AUTOMOTIVE STEPPING MOTOR DRIVER

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

AUTOMOTIVE STEPPING MOTOR DRIVER

Technical Specifications

Parameters and characteristics for this part

Specification	TB9120FTG(EL)

Function	Driver
Grade	Automotive
Interface	PWM
Motor Type - Stepper	Bipolar
Mounting Type	Wettable Flank, Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (2)

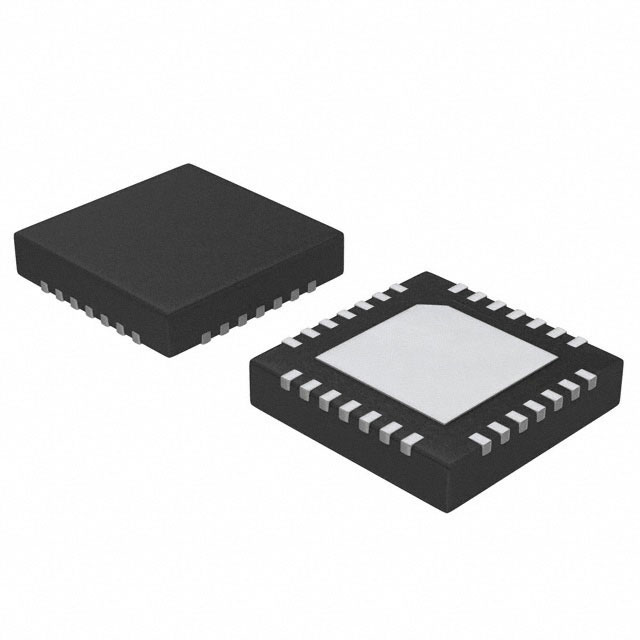

Package / Case	28-VQFN Exposed Pad
Qualification	AEC-Q100
Step Resolution [Max]	1
Step Resolution [Min]	0.00390625
Supplier Device Package	28-VQFN (6x6)
Technology	Bi-CMOS
Voltage - Load [Max]	18 V
Voltage - Load [Min]	4.5 V
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Supplier Device Package	Step Resolution [Max]	Step Resolution [Min]	Qualification	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Output Configuration	Voltage - Load [Min]	Voltage - Load [Max]	Interface	Motor Type - Stepper
Toshiba Semiconductor and Storage TB9120FTG(EL)	28-VQFN (6x6)	1	0.00390625	AEC-Q100	Surface Mount Wettable Flank	28-VQFN Exposed Pad	125 °C	-40 °C	Automotive	Bi-CMOS	4.75 V	5.25 V	Driver	Half Bridge (2)	4.5 V	18 V	PWM	Bipolar

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar Motor Driver Bi-CMOS PWM 28-VQFN (6x6)
