Specification	XC6VLX240T-3FFG1156C

Mounting Type	Surface Mount
Number of I/O	600
Number of LABs/CLBs	18840
Number of Logic Elements/Cells	241152
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	0 °C
Package / Case	1156-BBGA, FCBGA
Package Length	35 mm
Package Name	1156-FCBGA
Package Width	35 mm
Total RAM Bits	15335424 bits
Voltage - Supply (Maximum)	1.05 V
Voltage - Supply (Minimum)	0.95 V

XC6VLX240 Series

Part	Package / Case	Number of I/O	Number of LABs/CLBs	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Operating Temperature (Max)	Operating Temperature (Min)	Number of Logic Elements/Cells	Total RAM Bits	Mounting Type	Package Width	Package Name	Package Length	For Use With/Related Products	Interconnect System	Suggested Programming Environment	Type	Platform	Contents	Utilized IC / Part	P/N Breakdown
AMD / Xilinx XC6VLX240T-3FFG1156C	1156-BBGA FCBGA	600	18840	0.95 V	1.05 V	85 °C	0 °C	241152	15335424 bits	Surface Mount	35 mm	1156-FCBGA	35 mm
AMD / Xilinx DK-V6-CONN-G														XC6VLX240T	FMC	ISE	FPGA	Virtex-6 LXT FPGA Connectivity PCIe Card	Board Cable Power Supply	XC6VLX240T
AMD / Xilinx XC6VLX240T-2FFG1759C	1759-BBGA FCBGA	720	18840	0.95 V	1.05 V	85 °C	0 °C	241152	15335424 bits	Surface Mount	42.5 mm	1759-FCBGA	42.5 mm

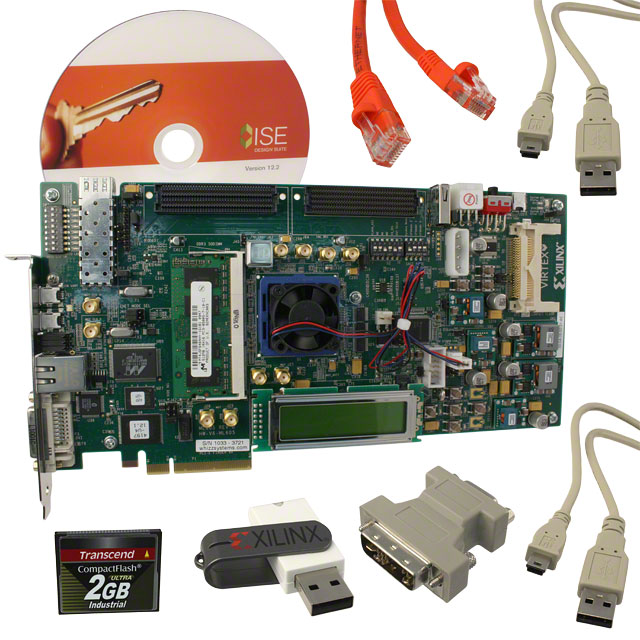

AMD / Xilinx DK-V6-EMBD-G-J														XC6VLX240T	FMC	ISE	FPGA	Virtex-6 LXT FPGA Embedded Japan PCIe Card	Board Cable(s) - Power Supply Not Included -	XC6VLX240T	J = Japan version does not ship with a power supply
AMD / Xilinx XC6VLX240T-2FF784I	784-BBGA FCBGA	400	18840	0.95 V	1.05 V	100 °C	-40 °C	241152	15335424 bits	Surface Mount	29 mm	784-FCBGA	29 mm
AMD / Xilinx XC6VLX240T-1FF784C	784-BBGA FCBGA	400	18840	0.95 V	1.05 V	85 °C	0 °C	241152	15335424 bits	Surface Mount	29 mm	784-FCBGA	29 mm
AMD / Xilinx XC6VLX240T-3FFG784C	784-BBGA FCBGA	400	18840	0.95 V	1.05 V	85 °C	0 °C	241152	15335424 bits	Surface Mount	29 mm	784-FCBGA	29 mm
AMD / Xilinx XC6VLX240T-1FF1156C	1156-BBGA FCBGA	600	18840	0.95 V	1.05 V	85 °C	0 °C	241152	15335424 bits	Surface Mount	35 mm	1156-FCBGA	35 mm
AMD / Xilinx XC6VLX240T-1FFG784C	784-BBGA FCBGA	400	18840	0.95 V	1.05 V	85 °C	0 °C	241152	15335424 bits	Surface Mount	29 mm	784-FCBGA	29 mm
AMD / Xilinx XC6VLX240T-3FFG1759C	1759-BBGA FCBGA	720	18840	0.95 V	1.05 V	85 °C	0 °C	241152	15335424 bits	Surface Mount	42.5 mm	1759-FCBGA	42.5 mm
