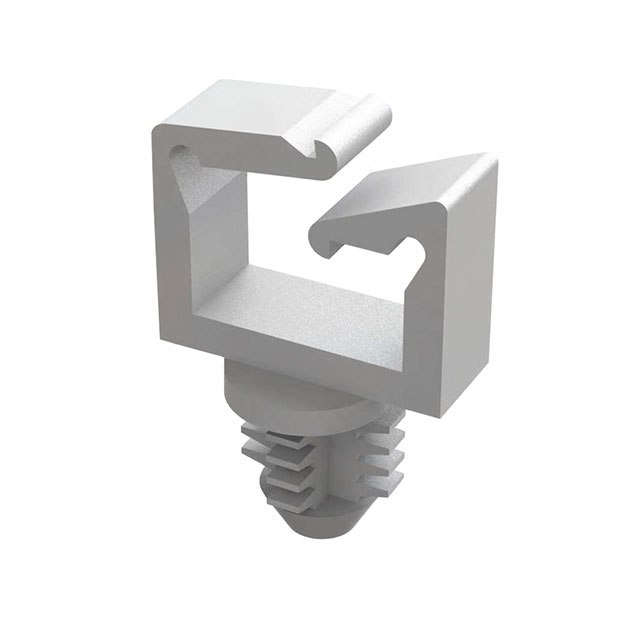

LWSBH-2-01

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE FIR TREE

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE FIR TREE

Technical Specifications

Parameters and characteristics for this part

Specification	LWSBH-2-01

Color	Natural
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.085 in
Material Thickness	2.16 mm
Mounting Type	Fir Tree, Blind Hole
Opening Size [x]	0.438 in
Opening Size [x]	11.13 mm
Opening Size [y]	8.64 mm
Opening Size [y]	0.34 in
Panel Hole Size	0.312 in
Panel Hole Size	7.92 mm
Panel Thickness	0.25 "
Panel Thickness	6.35 mm
Type	Clip, Wire Saddle
Type Attributes	Locking
Width	5.56 mm
Width [x]	0.219 in

Part	Panel Thickness	Panel Thickness	Type	Mounting Type	Opening Size [y]	Opening Size [x]	Opening Size [y]	Opening Size [x]	Material	Color	Width [x]	Width	Type Attributes	Material Flammability Rating	Panel Hole Size	Panel Hole Size	Material Thickness	Material Thickness
Essentra Access Solutions LWSBH-2-01	0.25 "	6.35 mm	Clip Wire Saddle	Blind Hole Fir Tree	8.64 mm	0.438 in	0.34 in	11.13 mm	Polyamide (PA66) Nylon 6/6	Natural	0.219 in	5.56 mm	Locking	UL94 V-2	0.312 in	7.92 mm	0.085 in	2.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Fir Tree, Blind Hole 0.438" L x 0.340" H (11.13mm x 8.64mm)

Technical documentation and resources

No documents available
